Single Bin Solution

Single Bin Solution

What is the Single Bin Solution?

The Single Bin Solution is SYSPAL's suggested manufacturing process using Eurobins

A lot of the bulk handling of ingredients in food manufacturing environments can involve time-consuming and manual-intensive processes. Manually weighing, mixing and transporting ingredients can have negative implications for productivity, employee safety and also compromise hygienic processes. This is something that SYSPAL understand and to improve these processes have developed a production sequence called ‘The Single Bin Solution’.

This is a series of mechanical handling equipment that’s designed to be the complete solution for weighing, mixing and moving product with minimal manual input, as well as then washing and storing the Eurobin after the process. The range includes a weigh scale, Eurobin racking storage, a Eurobin tumbler, a single column lifter or Eurobin tipper and a wash frame.

The Single Bin Solution offers a significant hygienic benefit because only one Eurobin is used for the entire process giving the producer more control. It also means that the Eurobin is only emptied and washed at the end of the process. This means that the ingredients are less exposed to the risks of cross-contamination caused by multiple bin transfers that could bring them into contact with foreign bodies and residual waste.

Throughput and quality are greatly improved by the elimination of manual handling which streamlines the process and reduces product interference. This also aids employee safety as it reduces the risk of costly musculoskeletal injuries caused by repetitive lifting and moving of the bins.

To see how The Single Bin Solution works in action we've put together an animation that shows the various processes throughout the sequence, which you can view below.

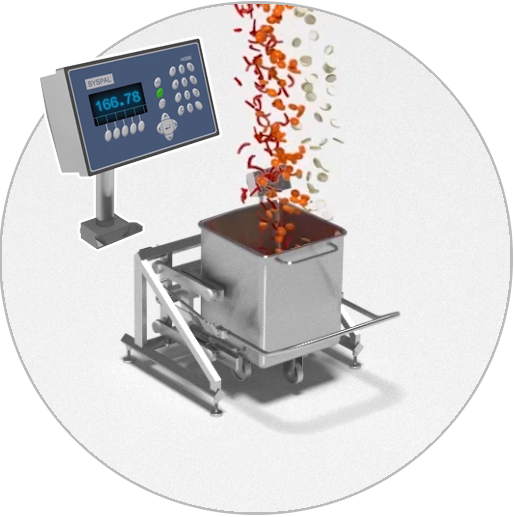

WEIGH - Eurobin Weigh Scales

Manufactured from grade 304 stainless steel for hygienic environments, SYSPAL's Eurobin Weigh Scales are designed to be fitted retrospectively, eliminating the need for floor pits and ramps whilst still maintaining a high level of accuracy.

Equipment available: 250kg Eurobin weigh scales, 350kg Eurobin weighscales, 350kg pneumatic weigh scales.

  • Nominal capacity: 250kg & 350kg
  • Mettler Toledo weigh head
  • Mains powered
  • Accommodates 200 litre and 300 litre Eurobins including chuted versions
  • IP65 protected
  • Free standing adjustable feet
down arrow

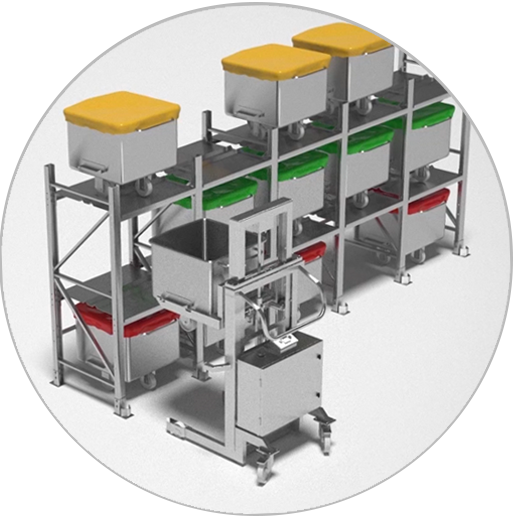

STORE - Eurobin Racking and Stacker

A modular Eurobin racking system that offers up to three times more storage capacity and improved batch control that can be installed in bespoke layouts designed to suit specific applications. Compatible with SYSPAL's Eurobin stacker that can safely lift and manoeuvre 200litre Eurobins.

Equipment available: Eurobin storage racking, Eurobin stacker.

  • Manufactured from 304 grade stainless steel
  • 250kg capacity per shelf
  • Bin location and retention system for safe storage
  • 12 volt battery and charger included for stacker
  • Nominal capacity of 250kg
  • Electro-hydraulic lift
down arrow

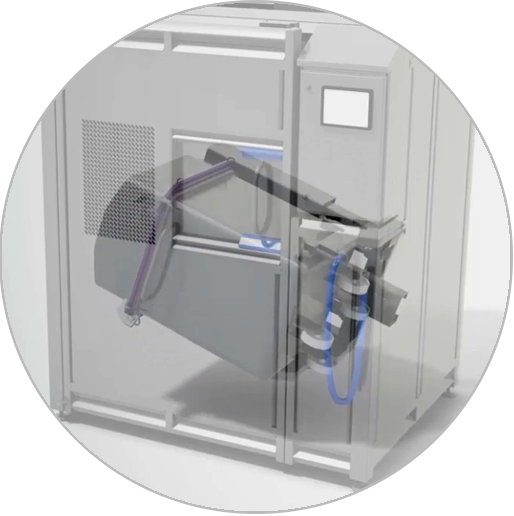

MIX - Eurobin Tumblers

Ideal for marinating, coating and infusing ingredients, this high capacity Eurobin tumbler is the first tumbler designed to accommodate both 200L and 300L Eurobins. The tumbler combines a product vacuum with bi-directional rotation to thoroughly mix ingredients, whilst minimising the risk of product damage leaving the user with a high quality finished product.

Equipment available: High capacity Eurobin tumbler, Mixing Eurobin tumbler.

  • Manufactured from 304 grade stainless steel
  • Nominal capacity: 350kg
  • HMI multi programmable recipe system
  • Mains power and six bar compressed air
  • Single person operation
down arrow

TIP - Eurobin Tipper

This Eurobin tipper is designed to eliminate manual handling in the process of lifting and emptying Eurobins to their desired location which increases efficiency and also reduces the risk of injury to staff. The tipper is able to accommodate 200 litre and 300 litre Eurobins as well as bowls and tanks making it a versatile piece of equipment.

Equipment available: Eurobin Tipper available with mobile or bolt down base.

  • Manufactured from 304 stainless steel
  • Nominal capacity: 350kg
  • Tipping height up to 1350mm
  • Tipping angle: 85° to 125°
  • Battery or mains powered
down arrow

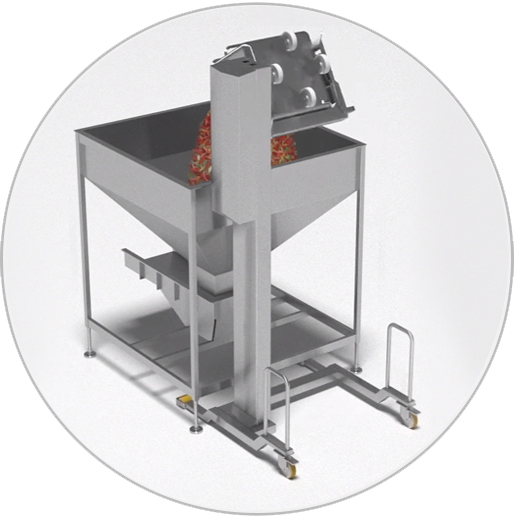

LIFT - Single Column Lifter

Lift Eurobins up to a platform or second level using the versatile single column lifter. Designed to increase efficiency and eliminate manual handling from the lifting process. Compatible with both 200 litre and 300 litre Eurobins as well as wheelie bins, bowls, vessels and tanks this lifter suits a number of different applications.

Equipment available: bolt-down single column lifter, mobile base single column lifter, single column lifter with bump rail, skeletal single column lifter, fully guarded single column lifter.

  • Manufactured from 304 stainless steel
  • Nominal capacity: 350kg
  • Tipping angle of 55°
  • Chain break mechanism
down arrow

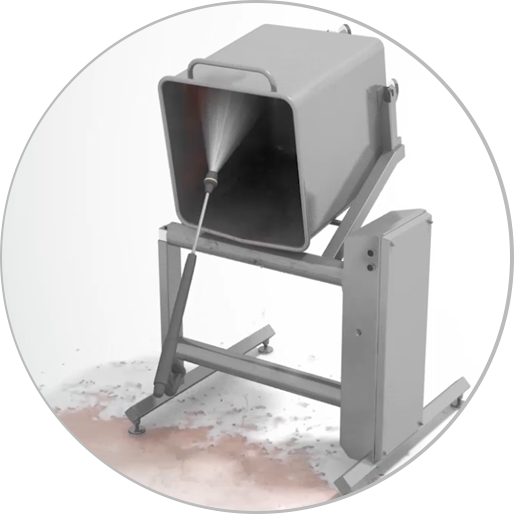

WASH - Single Eurobin Wash Frame

Allowing for 360° cleaning access the SYSPAL wash frames help to reduce manual handling and the risk of damage to the Eurobin, whilst improving throughput and hygienic practices.

Equipment available: single wash frame, double wash frame, manual wash frame.

  • Manufactured from 304 grade stainless steel
  • Accommodates both 200 litre and 300 litre Eurobins
  • Nominal capacity: 50kg (single) & 100kg (double)
  • 6 bar compressed air
  • Free standing adjustable feet
  • Manual and pneumatic options available
