Mixing & Blending Equipment

Eurobin Tumblers


Eurobin Tumblers

SYSPAL's range of Eurobin tumblers are specifically designed to revolutionise mixing processes in food, beverage and pharmaceutical manufacturing. Both the high capacity Eurobin tumbler and the mixing Eurobin tumbler have been developed to offer high quality, consistent and safe mixing of products.

Our mixing Eurobin tumbler is compatible with 200 litre DIN9797 standard Eurobins, while the high capacity model offers the flexibility of working with both 200 litre and 300 litre DIN9797 Eurobins.

The machinery uses a unique bi-directional rotation method of mixing products. This system prevents 'dead-spots' in the mix that often occur as part of Z-blade or paddle mixing. Eliminating paddles and blades also means that delicate products can be mixed effectively with a significant reduction in product damage.

This tumbler mixing method increases productivity as well. A shorter mixing time and one person operation ensure the process can be carried out quickly and efficiently without a drop off in quality. Programmable recipes accessed via an easy to use HMI screen provide the user full control, providing a high quality mix with exacting detail every time.

SYSPAL Eurobin tumblers are flexible and able to mix a variety of different product types from delicate pasta and shellfish to bulky meat and poultry.

As consumer habits change and industry trends grow, our tumblers have proven their versatility. In particular working with powdered drinks, formulas and specialist beverages. The unique tumbling method is ideal for exactly this type of mixing. This is mainly due to the significant reduction in 'dead-spots' and mix consistency.

Operational Benefits:

  • Reduces injury risks associated with manual handling
  • Significantly reduces product damage due to the non-use of rotating Z-blades or paddles
  • Increased production efficiency by reducing product transfer and handling when integrated into the SYSPAL Single Bin Solution process
  • Large capacity hood and user speed control ensures free-movement of product while tumbling, ensuring the best quality mix in the shortest period of time
  • User friendly operator controls via panel mounted HMI display
  • Consistent results achieved via programmable recipe create, save and recall function
  • Bi-directional rotation of the Eurobin, vastly improves product mix quality vacuum function, assists in reducing marinating times
  • Quick product change over utilising pre-set clean and seal change modes

Types of Eurobin Tumbler

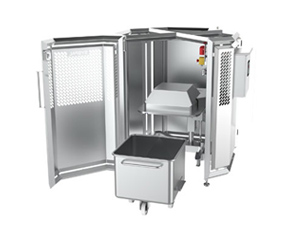

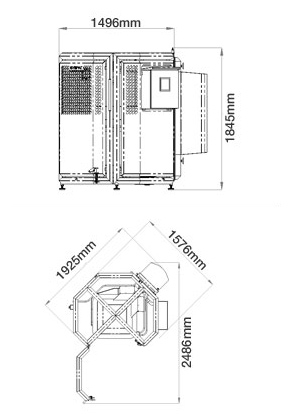

Mixing Tumbler

The SYSPAL Mixing Eurobin tumbler is designed to handle 200 litre DIN9797 Eurobins. The unique angular bin rotation “folds” the ingredients, producing a high quality homogenous mix. This is ideal when handling difficult recipes where bulk densities, viscosities and water content varies within the individual ingredients.

Specification features for Eurobin Mixing Tumbler:

  • Compatible with 200 litre DIN9797 Eurobins
  • HMI multi programmable recipe system
  • Bi-directional mixing with speed control
  • Safe maintenance and washdown program
  • Angular rotation
  • Single phase mains power and 6 bar compressed air
  • 304/316 stainless steel construction
  • Nominal capacity: 250kg

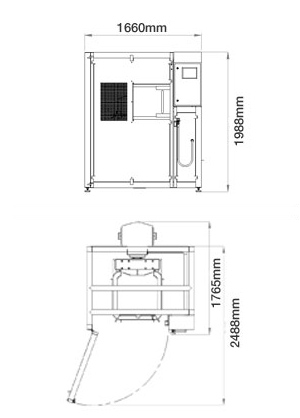

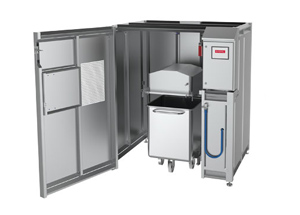

High Capacity Tumbler

The SYSPAL High Capacity Eurobin tumbler is designed to handle both 200 litre and 300 litre DIN9797 Eurobins with no additional set-up or changing of parts. Vacuum assist is an option, this allows the air to be removed from within the Eurobin and machine mixing hood prior to tumbling. This can offer a significant reduction in marinating time and improve overall final product results.

Specification features for Eurobin High Capacity Tumbler:

  • Compatible with 200 litre and 300 litre DIN9797 Eurobins
  • HMI multi programmable recipe system
  • Bi-directional mixing with speed control
  • Safe maintenance and washdown program
  • Vacuum assist available as an option
  • 3 phase mains power and 6 bar compressed air
  • 304/316 stainless steel construction
  • Nominal capacity: 350kg

Product Applications


Cous cous
Cous cous
Bean Salad
Bean Salad
Egg Fried Rice
Egg Fried Rice
Cereal
Cereal
Fruit and Nut
Fruit and Nut
Coleslaw
Coleslaw
Salad
Salad
Snack Foods
Snack Foods
Pulled Pork
Pulled Pork
Mixed Vegetables
Mixed Vegetables
Chicken with marinade
Chicken with marinade
Ribs with marinade
Ribs with marinade
Pasta Salad
Pasta Salad
Marinated Prawns
Marinated Prawns
Drinks Powders
Drinks Powders
Seafood Salad
Seafood Salad
Curry
Curry
Chicken Salad
Chicken Salad
Pie Filling
Pie Filling
Ready Meals
Ready Meals

The SYSPAL Single Bin Solution - Production Flow

SYSPAL’s Eurobin tumblers are specified as part of the SYSPAL Single Bin Solution. The complete production system using 200 litre and 300 litre Eurobins.

Find out below how the Tumbler fits into the solution

single bin solution

View the Single Bin Solution Animation
