SYSPAL Wash Frames

SYSPAL wash frames are designed with versatility, simplicity and safety in mind. Reducing manual handling ensures the highest level of safety in the production environment. The wash frames are designed for use by a single operator, helping to improve the efficiency of your production line.

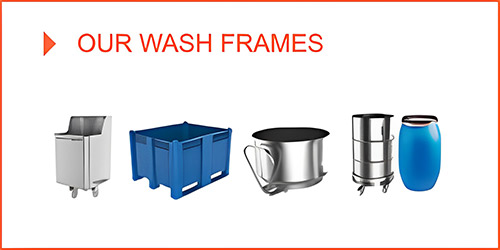

Wash frames not only reduce the requirements for manual handling, they also assist with the cleaning of awkward or bulky containers. Industry staples such as Eurobins, tote bins, containers, dolavs, bowls and tanks are cleaned with ease. All wash frame models are available with bolt down feet or freestanding.

Allowing for 360° cleaning and maintenance access, the SYSPAL Container Wash Frames reduce the risk of manual handling injuries and the risk of damage to both the Eurobin and the washroom floor, whilst improving throughput and hygienic practices.

Manual, direct drive or pneumatic options are available. Wash frames lift between 50 and 500kg with pneumatic options taking between 10 to 15 seconds to lift to 100° (optimum cleaning angle).

All SYSPAL products engineered for the food or pharmaceutical industry are finished to an exceptionally high standard from 304 grade stainless steel. The material is easy to sanitise and resistant to oxidation and corrosion.


Operational Benefits:


  • Full 360° access to the interior and exterior including the base and wheel arrangements
  • Hold to run pneumatics offer the safest operation in wet environments
  • Up to 100° tipping angles
  • Bespoke carriage design to accommodate Eurobins, tanks, dolavs etc.
  • 50kg and 100kg capacity models available
  • Part of ‘the Single Bin Solution’ - Improve overall production processes with the complete solution for processing food and food ingredients

Our friendly and knowledgeable team will be happy to advise you of the best options for your requirements.

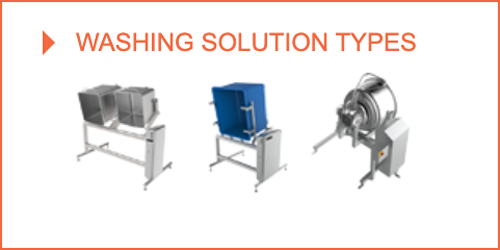

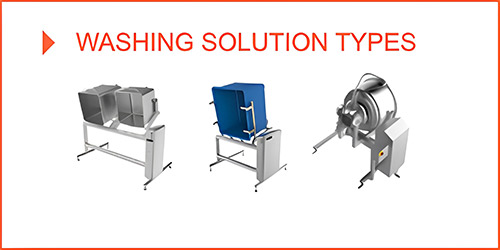

Types of Wash Frames

Pneumatic Wash Frame - Single / Double Unit

Pneumatic wash frame units designed to handle 200 and 300 litre Eurobins. Available in a single or double unit, the pneumatic wash frame can raise Eurobins up to 100°.


Manual Wash Frame

The manual Eurobin wash frame is the most cost effective way to manually handle food industry Eurobins during wash down. Allowing the user to safely raise containers up to 100° for effective wash down.


Dolav / Tank Wash Frame

Allows for safe and effective cleaning of awkward and heavy dolav containers. This freestanding unit has pneumatic operation controls to raise load up to 100° for simple and effective clean down.


Heavy Duty Tank Wash Frame

For use with heavy tanks this wash frame has a load capacity of up to 500kg. The wash frame utilises a direct drive to tip the containers up to 100° allowing sufficient access for effective cleaning.


Heavy Duty Mixing Bowl Wash Frame

For use with large mixing bowl containers, providing full 360° access to the interior and exterior. Effectively clean down large containers following mixing processes.

The SYSPAL Single Bin Solution - Production Flow


SYSPAL's Eurobin Wash Frames are specified as part of the SYSPAL Single Bin Solution. The complete production system using 200 litre and 300 litre Eurobins.

Find out below how the Wash Frames fit into the Single Bin Solution



Weigh

SYSPAL's Eurobin Weigh Scales are designed to be fitted retrospectively, eliminating the need for floor pits and ramps whilst still maintaining a high level of accuracy.

down arrow

Store

A modular Eurobin racking system that offers up to three times more storage capacity and improved batch control that can be installed in bespoke layouts designed to suit specific applications.

down arrow
mixing solutions

Mix

Ideal for marinating, coating and infusing ingredients, this high capacity Eurobin tumbler is the first tumbler designed to accommodate both 200L and 300L Eurobins. Uses a unique bi-directional mixing method to thoroughly mix ingredients.

down arrow

Lift/Tip

Use lifters or tippers wilst lifting and emptying Eurobins to their desired location. This eliminates manual handling which increases efficiency and also reduces risk of injury to staff.

down arrow

Wash

Allowing for 360° cleaning access, the SYSPAL wash frames reduce the risk of manual handling injuries and the risk of damage to both the Euobin and the wash room floor, whilst improving throughput and hygienic practices.
