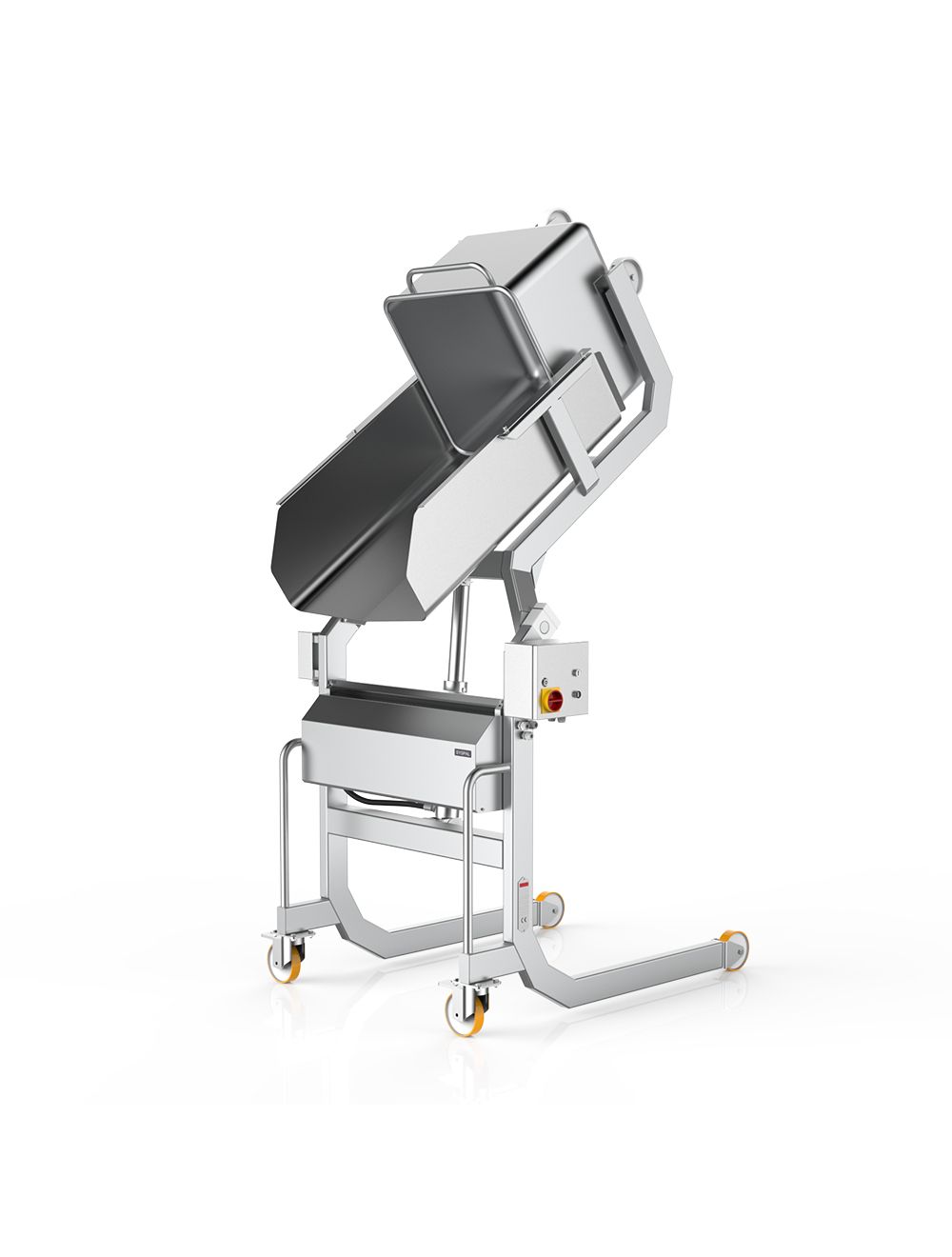

Eurobin Tipper

# Part Number:
600/HT2

The SYSPAL Eurobin tipper has been designed to increase efficiency and reduce the amount of manual handling required to empty 200 litre and 300 litre Eurobins.

  • Grade 304 Stainless Steel Construction
  • 350kg nominal capacity
  • Up to 125° tipping angle
  • Available with bolt down or mobile base
  • Bead Blast finish
  • Bespoke transfer chutes available to suit specific applications
  • Can be integrated with a range of feed and transfer tables
MORE Eurobin Tipper FEATURES


Eurobin Tipper Download Specification TECHNICAL SPECIFICATION
Options Available
£0.00

Documents

Downloads for Eurobin Tipper

Eurobin Tipper Download Specification TECHNICAL SPECIFICATION

  • For safe emptying of 200 and 300 litre Eurobins onto tables, conveyors or other work surfaces
  • Grade 304 Stainless Steel Construction
  • Bead Blast finish
  • Reduces the possibility of injury caused by manual lifting of Eurobins
  • Tipping angle range: 125° max from lowered position - 35° from horizontal position
  • Max tipping height: 1350mm
  • Designed to suit most applications
  • Requires 400 volt 3 phase neutral and earth
  • IP65
  • Capacity S.W.L. 350kg
  • Control voltage 24 volts
  • Features a hold to run control
  • Electro-Hydraulically powered
  • Hydraulic tippers can also be designed to lift a range of tanks or bins on request
