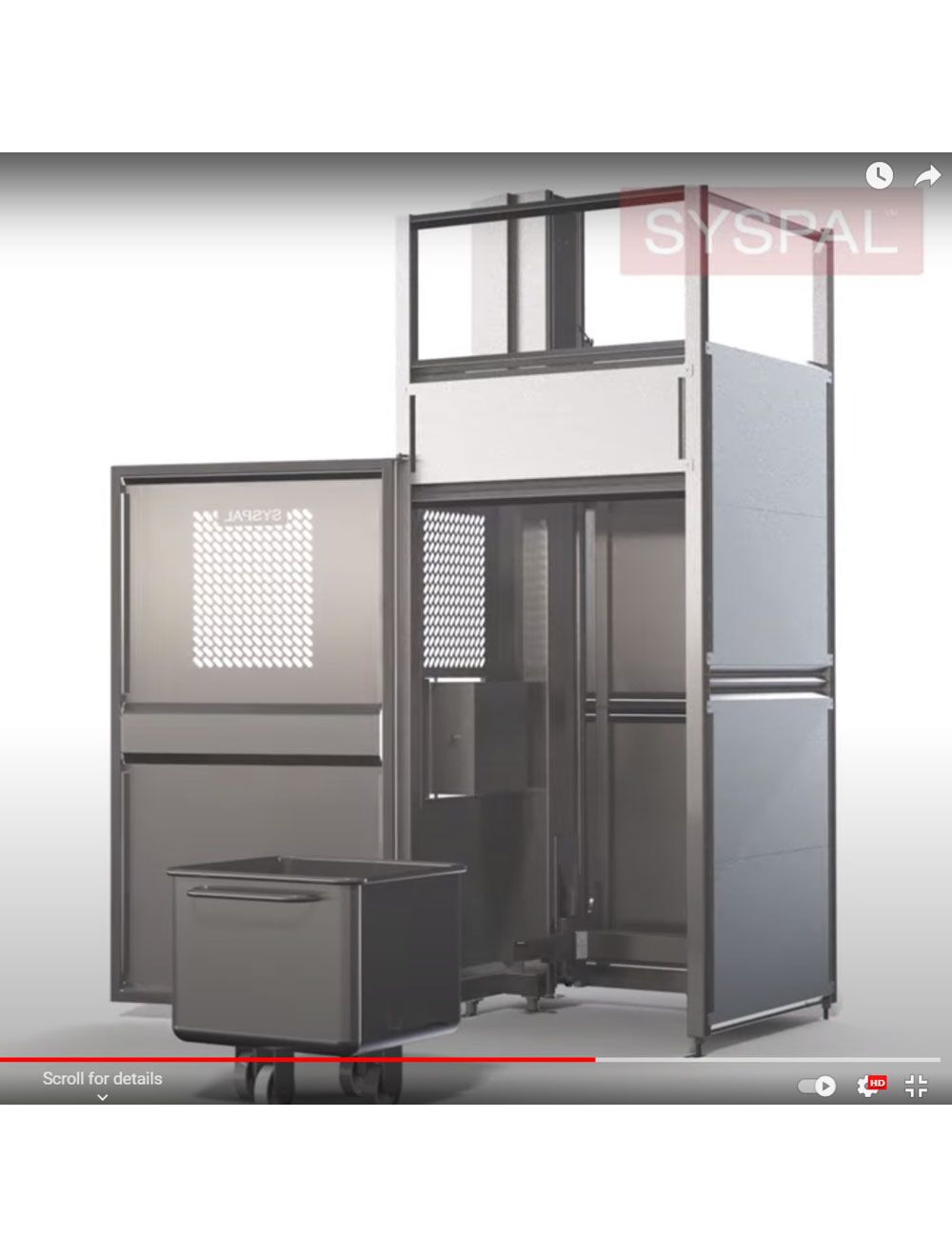

Single Column Tipper Guarded

# Part Number:
Single Column tipper Guarded
  • The full range of single column tippers can be supplied with guarding for extra security and safety, made specifically to each individual design and space requirement
  • External control panel
  • Grade 304 stainless steel construction
MORE Single Column Tipper Guarded FEATURES


Single Column Tipper Guarded Download Specification TECHNICAL SPECIFICATION
Options Available

* Required Fields

£0.00

Documents

Downloads for Single Column Tipper Guarded

Single Column Tipper Guarded Download Specification TECHNICAL SPECIFICATION

  • The full range of single column lifters can be supplied with guarding for extra security and safety, made specifically to each individual design and space requirement
  • External control panel
  • Grade 304 stainless steel construction
  • Tipping angle: 145° max - 55° from horizontal
  • Safe working load: 350kg
  • Electrical requirements: 400v 3 phase

Bump Rail Guarding:

  • Offers protection against impact from light duty equipment
  • Directs operatives away from walking into the lift carriage load/unload area

Full Sheet Guarding:

  • Fully enclosed 304 grade stainless steel guarding up to 2.4m high
  • Box section structural frame complete with laser profiled sheet inserts
  • Available with interlocked access doors preventing operative access to lifter when machine is in operation
  • Designed to contain the vessel tank and carriage within the footprint of the machine in the event of a total machine failure
Tipping mechanism options that can be specified:

Roller tipping - Allows quick bin rotation and an increased tip angle of up to 55°. This assists in transfer of difficult or sticky product. Typical applications would be high viscosity liquids, dough and pastry products or prepared/IQF vegetables. (For use with 200 and 300 litre Eurobins as well as other containers.)

Curve tipping - Allows a more controlled tip function up to a tip angle of up to 45°. Ideal for installations where height restrictions are a limiting factor. Typical applications would be low viscosity liquids, such as stocks, sauces or free flowing grains, powders etc. (For use with 200 and 300 litre Eurobins as well as other containers.)

Track chute tipping - The combination of tip curve function and additional track mounted chute maximises product control when feeding cooking kettles or vessels for similar processes. Tipping angle up to 45°. (Can only be specified with 200 litre Eurobins.)
