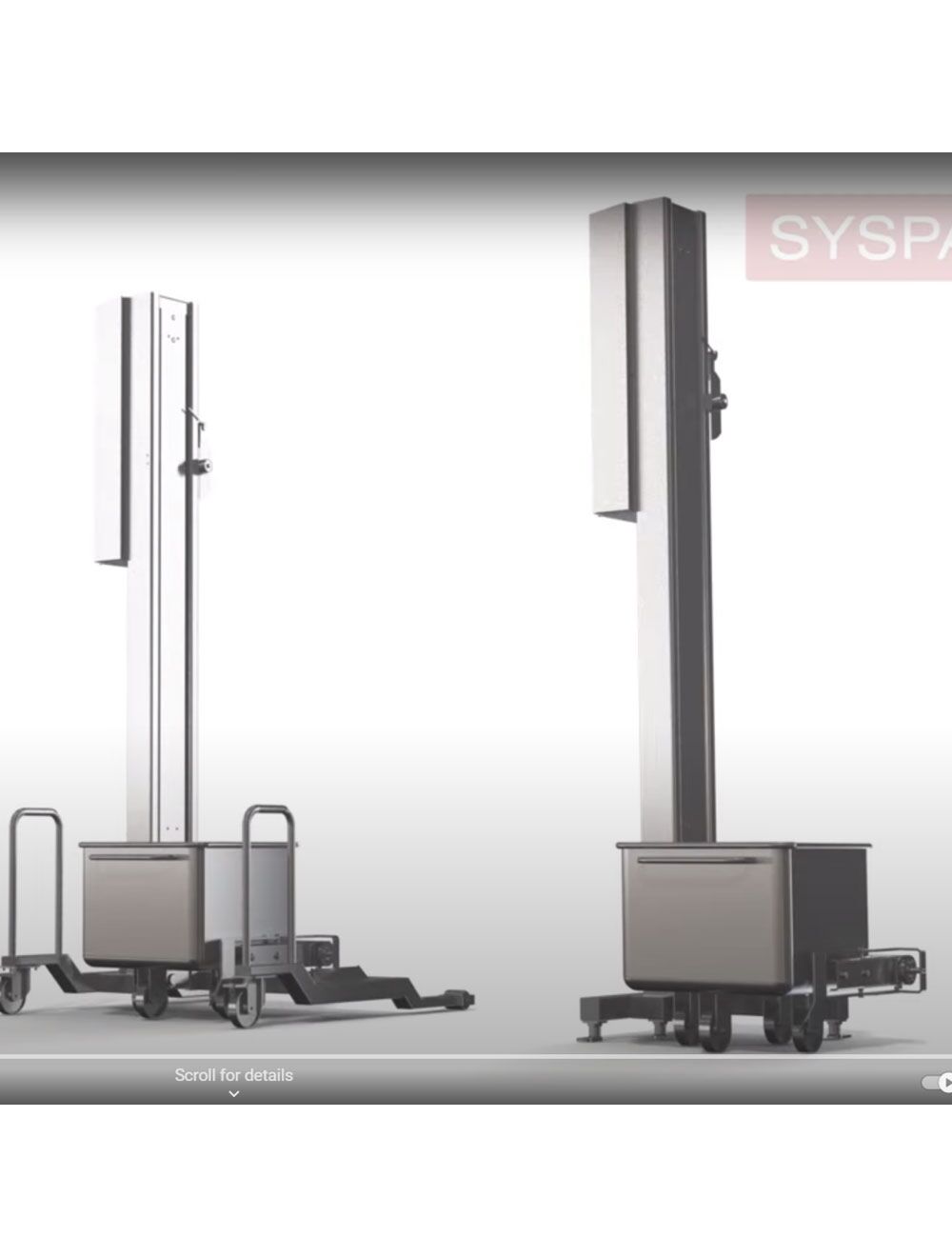

Single Column Tipper Bolt Down

# Part Number:
600/SCB
  • SYSPAL single column tippers increases productivity, efficiency and saves on labour.
  • Significantly reduces the risk of injury and accidents caused through manual handling operations.
  • Hygienically designed and manufactured in 304 grade stainless steel to IP65 standards specifically for the food & pharmaceutical industry.
  • Column heights, and tipping profiles designed to suit individual handling applications Up to 350kg SWL.
MORE Single Column Tipper Bolt Down FEATURES


Single Column Tipper Bolt Down Download Specification TECHNICAL SPECIFICATION
Enquire For Price

Documents

Downloads for Single Column Tipper Bolt Down

Single Column Tipper Bolt Down Download Specification TECHNICAL SPECIFICATION

  • SYSPAL Single Column lifters increases productivity, efficiency and saves on labour
  • Significantly reduces the risk of injury and accidents caused through manual handling operations
  • Hygienically designed and manufactured in 304 grade stainless steel to IP65 standards specifically for the food & pharmaceutical industry
  • Column heights, and tipping profiles designed to suit individual handling applications Up to 350kg SWL
  • Tipping angle: 145° max - 55° from horizontal
  • Safe working load: 350kg
  • Electrical requirements: 400v 3 phase
  • Left or right hand lift columns
  • Lifting carriages can be designed to handle a wide range of bowls, vessels, tanks, used in the food industry
  • Mobile carriage frames available on a wide variety of the single column lifter models
  • Available with various guarding options

Safety features:

  • High & low level lift carriage limit switches
  • Lift column chain guard
  • Mechanical chain-break safety column – Prevents Euro Bin falling in the event of a chain failure
  • Foot operated electro/mechanical safety mechanism on bin location arms – Prevents Lifter from operating if Euro Bin is not located in the lift carriage correctly
Tipping mechanism options that can be specified:

Roller tipping - Allows quick bin rotation and an increased tip angle of up to 55°. This assists in transfer of difficult or sticky product. Typical applications would be high viscosity liquids, dough and pastry products or prepared/IQF vegetables. (For use with 200 and 300 litre Eurobins as well as other containers.)

Curve tipping - Allows a more controlled tip function up to a tip angle of up to 45°. Ideal for installations where height restrictions are a limiting factor. Typical applications would be low viscosity liquids, such as stocks, sauces or free flowing grains, powders etc. (For use with 200 and 300 litre Eurobins as well as other containers.)

Track chute tipping - The combination of tip curve function and additional track mounted chute maximises product control when feeding cooking kettles or vessels for similar processes. Tipping angle up to 45°. (Can only be specified with 200 litre Eurobins.)
