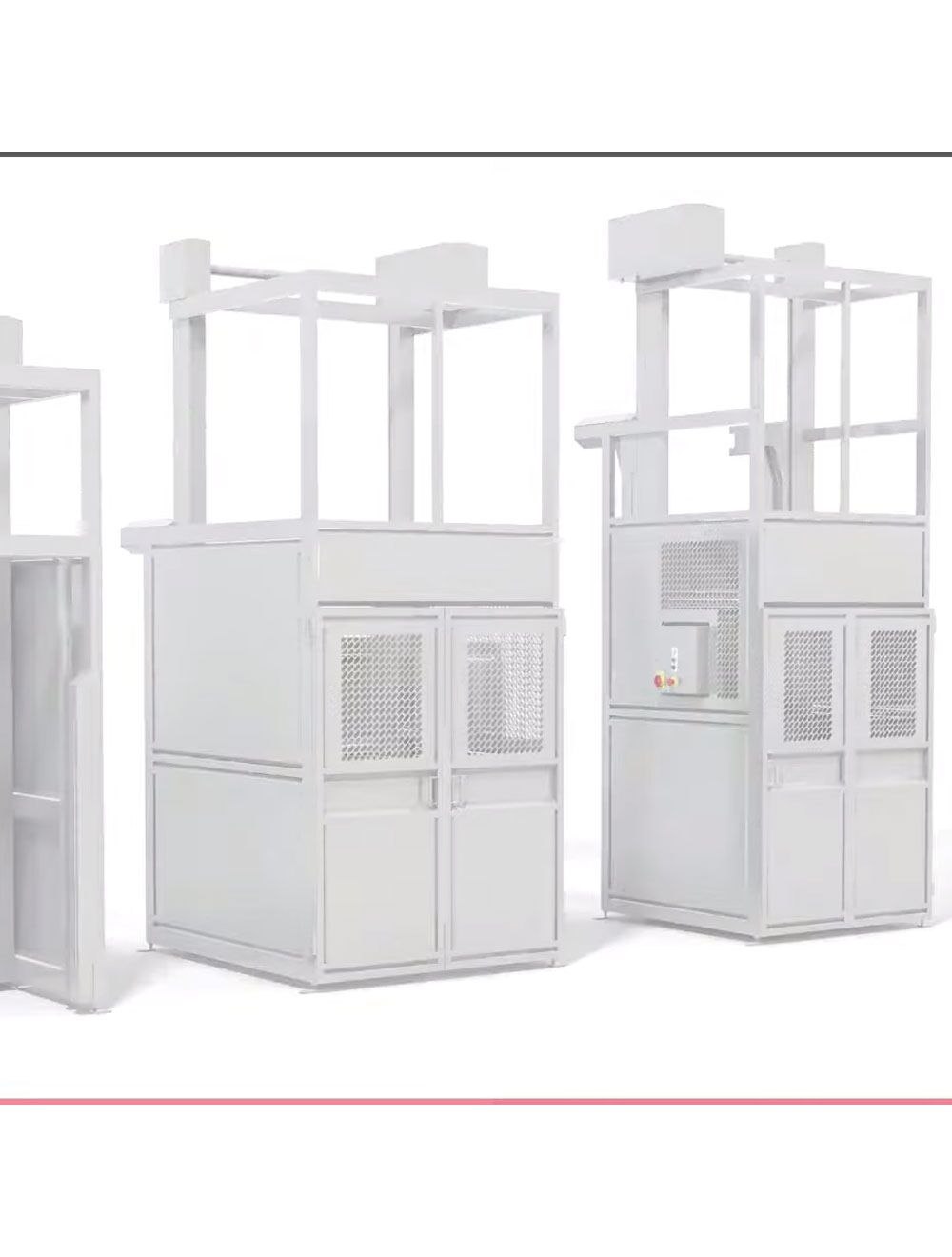

DC300-Container - Double Column Tipper - Raised Position

DC300-Container - Double Column Lifter - Raised Position

Dolav Column Tipper

# Part Number:
container

This double column tipper is designed to safely raise and tip industrial containers and Dolavs in any hygienic environment, flexibly designed to accommodate bespoke tip heights, tip angles and production line integration options to meet individual needs.

Can handle up to 1500kg of product inside Dolavs and industrial containers
Grade 304 stainless steel construction
Enables fast and efficient handling of various products.
Hygienic design
Operator control functions and production line integration options available
Enables fast and efficient handling of various products
Interlocked guarding as standard

If you have any questions about this product please call our friendly sales team on +44(0)1952 883188 or complete our contact form to receive a call back

MORE Dolav Column Tipper FEATURES

TECHNICAL SPECIFICATION

Enquire For Price

Qty:

Product Description

Documents

Downloads for Dolav Column Tipper

TECHNICAL SPECIFICATION

These lifters can be designed to tip a variety of containers, plastic pallets, CHEP, pallecon and Dolavs with weights at heights to suit most applications
Grade 304 Stainless Steel
Enables fast and efficient handling of various products
Can be supplied with guarding and interlocking gates for safety
Finish: Bead Blast
Electrical Requirements: 400 volt 3 phase neutral and Earth
Control voltage: 24 volts
Protection: IP65
Maximum S.W.L: 600-1500kg
Tipping height range:135° max - 45° from horizontal position
Features:
Hold to run
Tested to 1½ times SWL
Lifting via duplex chains
Options:
Can be designed to lift most vessels used in the food industry
Guarding with interlocked gates
Syspal designs and maufactures a wide range of lifters to suit most requirements
