Guarded Dolav Tipper

# Part Number:
DOLAV

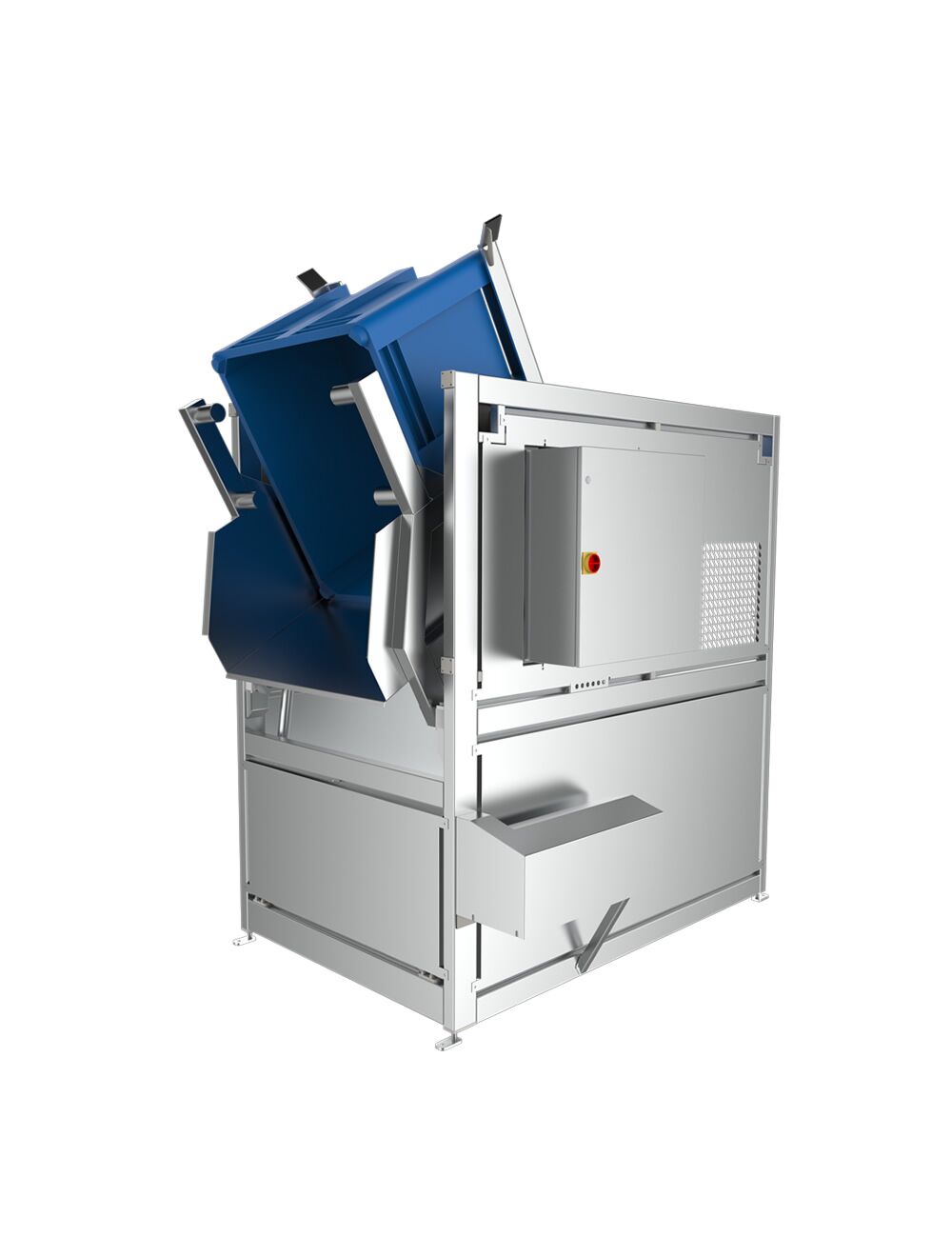

  • Lifts Dolav containers, plastic pallet boxes, CHEPs, pallecons and industrial containers via twin hydraulic rams.
  • The unit tips its contents safely and efficiently onto an acceptance conveyor or into smaller receiving bins or buggies.
  • The unit suits most applications and can be mobile or static.

If you have any questions about this product please call our friendly sales team on +44(0)1952 883188 or complete our contact form to receive a call back

MORE Guarded Dolav Tipper FEATURES


Guarded Dolav Tipper Download Specification TECHNICAL SPECIFICATION
Enquire For Price

Documents

Downloads for Guarded Dolav Tipper

Guarded Dolav Tipper Download Specification TECHNICAL SPECIFICATION

  • Lifts Dolav containers via twin hydraulic rams.
  • The unit tips its contents safely and efficiently onto an acceptance conveyor or into smaller receiving bins or buggies.
  • The unit suits most applications and can be mobile or static.
  • Supplied with side guarding as standard.
  • Material: 304 Stainless Steel
  • Tipping angle range: 125° max from lowered position - 35° from horizontal position
  • Max tipping height: 1500mm
  • Capacity: To suit application or container
  • Finish: Bead blast
  • Electrical requirements: 400 volt 3 phase neutral and earth
  • Control voltage: 24 volts
  • Protection: IP65
  • Safe working load: 600-1500kg
  • Features:
    Hold to run
    Tested to 1½ times SWL
    Electro-Hydraulically Powered
  • Options:
    Can be designed to lift a vaiety of containers
    Electronically interlocked gates
    Static or mobile
  • Syspal KG designs and manufactures a wide range of lifters to suit most applications.
