Mobile Eurobin Wash Frame Double Unit

This mobile Eurobin wash frame allows for safe, effective 360° cleaning access to the interior and exterior, including the base and wheel arrangements for 200L or 300L Eurobins

  • Provides operators 360° cleaning access to the interior and exterior of 200L and 300L Eurobins
  • Ergonomic design significantly reduces the risk of injury and accidents caused through manual handling of Eurobins during the washing process
  • Achieve the highest levels of safety in a wet room environment using a pneumatic cylinder operation with no electrics
  • Durable, hygienic 304 grade stainless steel construction
  • Safe working load of 100kg, the Eurobin double wash frame is suitable for 200L and 300L Eurobins
  • Designed for use by a single operator with Hold to Run pneumatic operation
  • A tip angle of 100° ensures an accurate wash with excellent residual water drainage
  • Easy load and unload of Eurobin is achieved using location guides on frame
  • Part of the SYSPAL ‘Single Bin Solution’ for increased throughput, efficiency and hygiene


Looking for more Eurobin handling equipment?
View the full range of Eurobin equipment here.


£0.00
SKU CODE: 600/HA300-1017

SYSPAL mobile Eurobin wash frames are designed to allow for the safe and effective manual washing of Eurobins and other food industry tanks and containers.

Hygienically designed and manufactured in 304 grade stainless steel specifically for food industry wash-down applications.

Use of this mobile double wash frame unit removes the requirement for manual handling operations when cleaning and helps to prevent damage sustained to Eurobins & containers during manual washing operations.

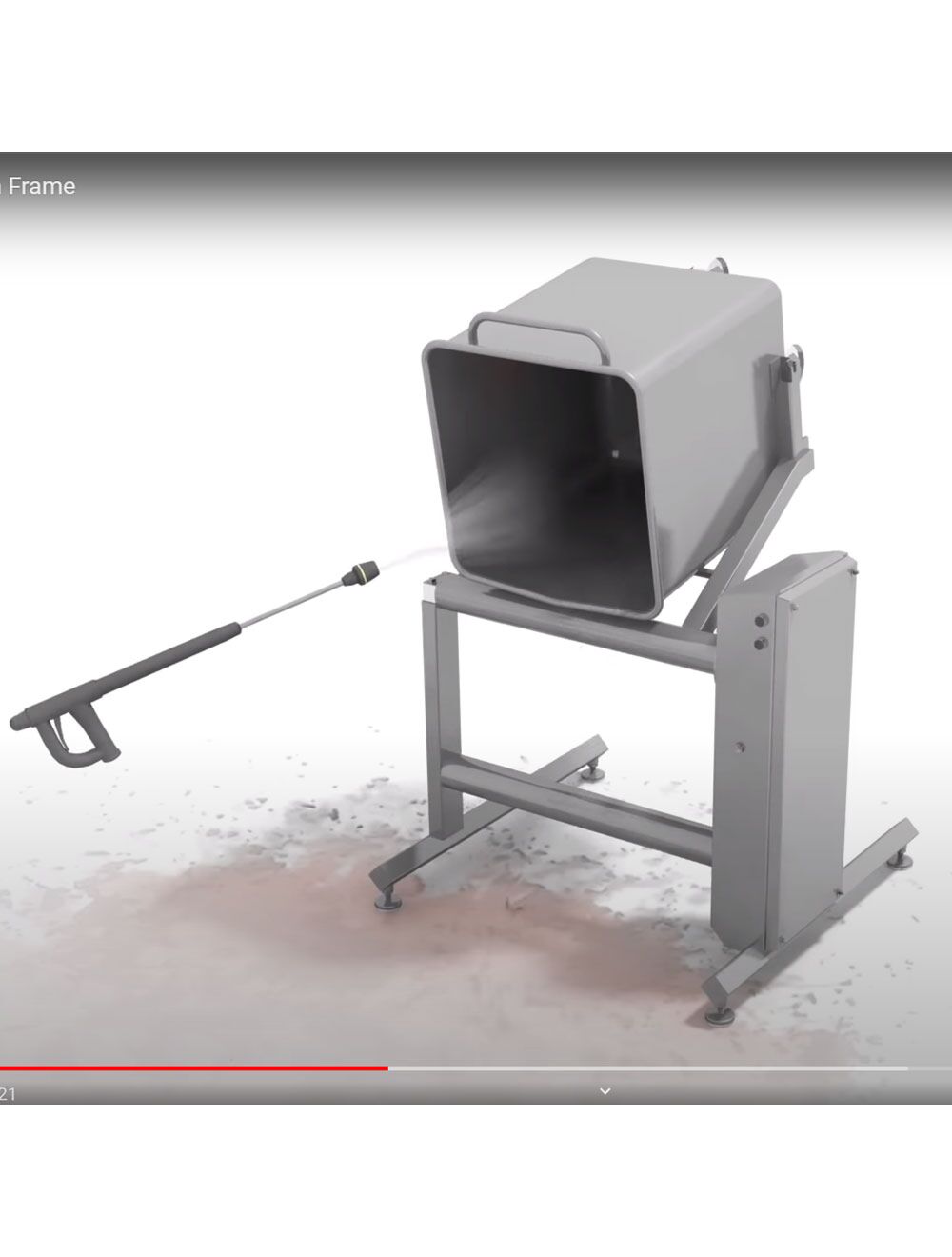

The carriage arm rotates and lifts the Eurobins clear from the wash room floor enabling operative access to all sides of the bin & holding in position at 10º from horizontal enables residual wash water to drain away.

The standard wash frame units are designed to handle both 200L and 300L Eurobins.

Lifting carriage arms can be designed and manufactured to accommodate a wide range of bowls, vessels, tanks and other food industry container types.

  • Tipping angle range: 100° max from lowered position - 10° from horizontal position
  • Max tipping height: 925mm
  • Safe working load: 100kg
