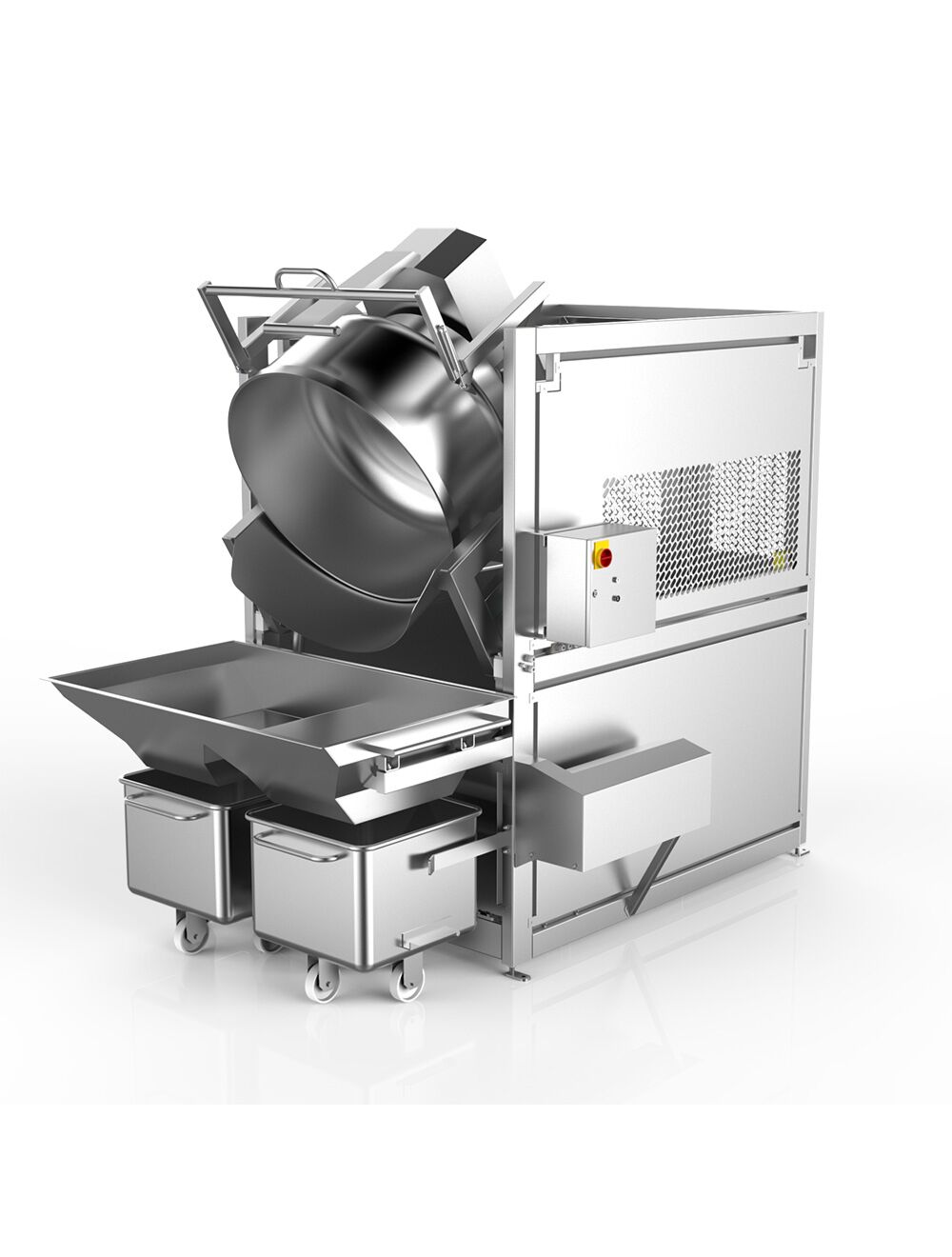

Mixing Bowl Tipper

# Part Number:
BOWL
  • Lifts mixing bowls via twin hydraulic rams.
  • The unit tips its contents safely and efficiently onto acceptance conveyors, tables or into smaller receiving bins or buggies.
  • The unit suits most applications and can be mobile or static.
  • Supplied with side guarding as standard.
  • Maximum tipping height 1500mm.
MORE Mixing Bowl Tipper FEATURES


Mixing Bowl Tipper Download Specification TECHNICAL SPECIFICATION
Enquire For Price

Documents

Downloads for Mixing Bowl Tipper

Mixing Bowl Tipper Download Specification TECHNICAL SPECIFICATION

  • Lifts mixing bowls via twin hydraulic rams.
  • The unit tips its contents safely and efficiently onto acceptance conveyors, tables or into smaller receiving bins or buggies.
  • The unit suits most applications and can be mobile or static.
  • Supplied with side guarding as standard.
  • Tipping angle range: 125° max from lowered position - 35° from horizontal position
  • Maximum tipping height 1500mm.
  • Material: 304 Stainless Steel
  • Capacity: To suit application or container
  • Finish: Bead Blast
  • Electrical Requirements: 400 volt 3 phase neutral and earth
  • Control voltage: 24 volts
  • Safe working load: 600-1500kg
  • Protection: IP65
  • Features:
    Hold to run
    Tested to 1½ times SWL
    Electro-Hydraulically Powered
  • Options:
    Electronically interlocked gates
    Static or mobile
