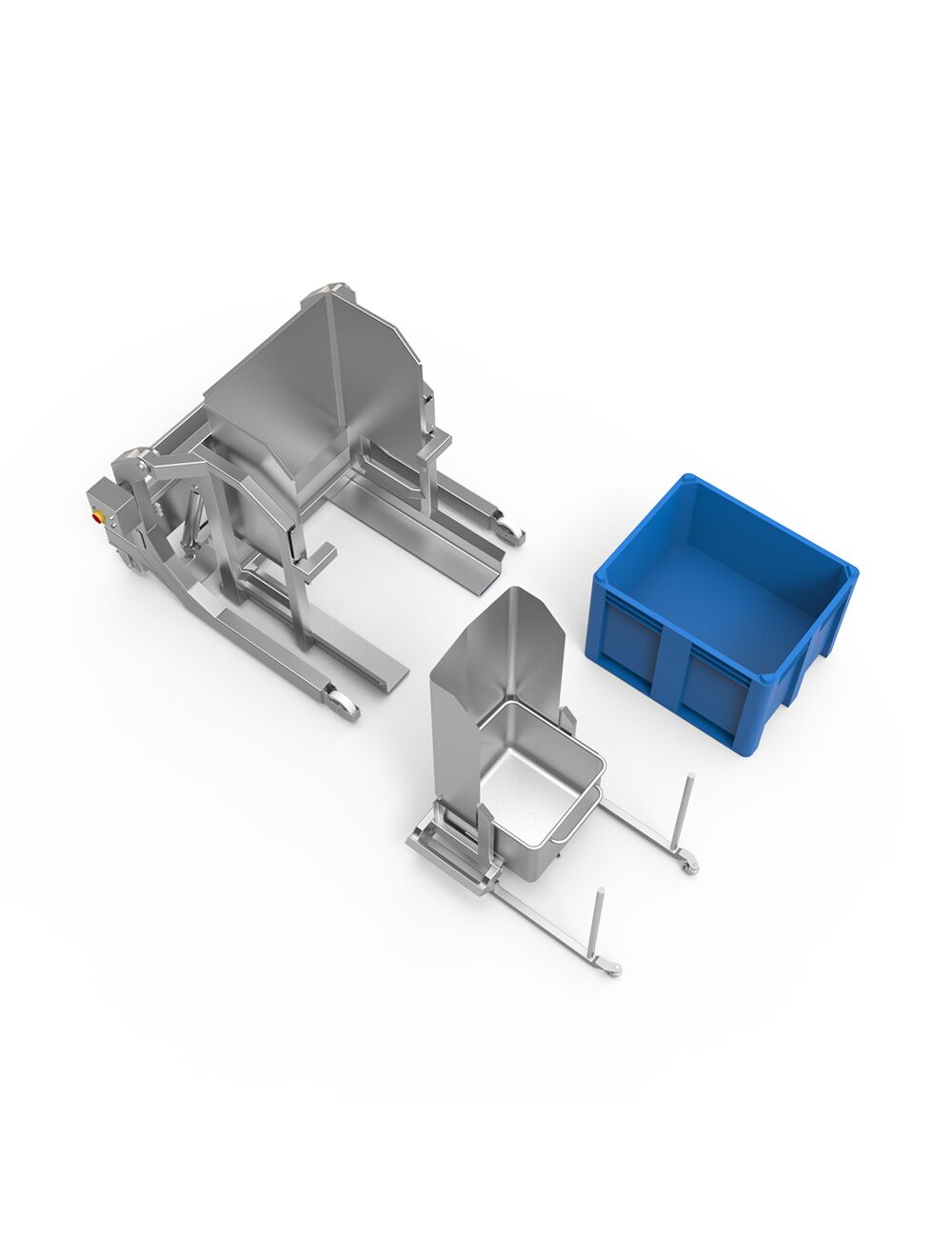

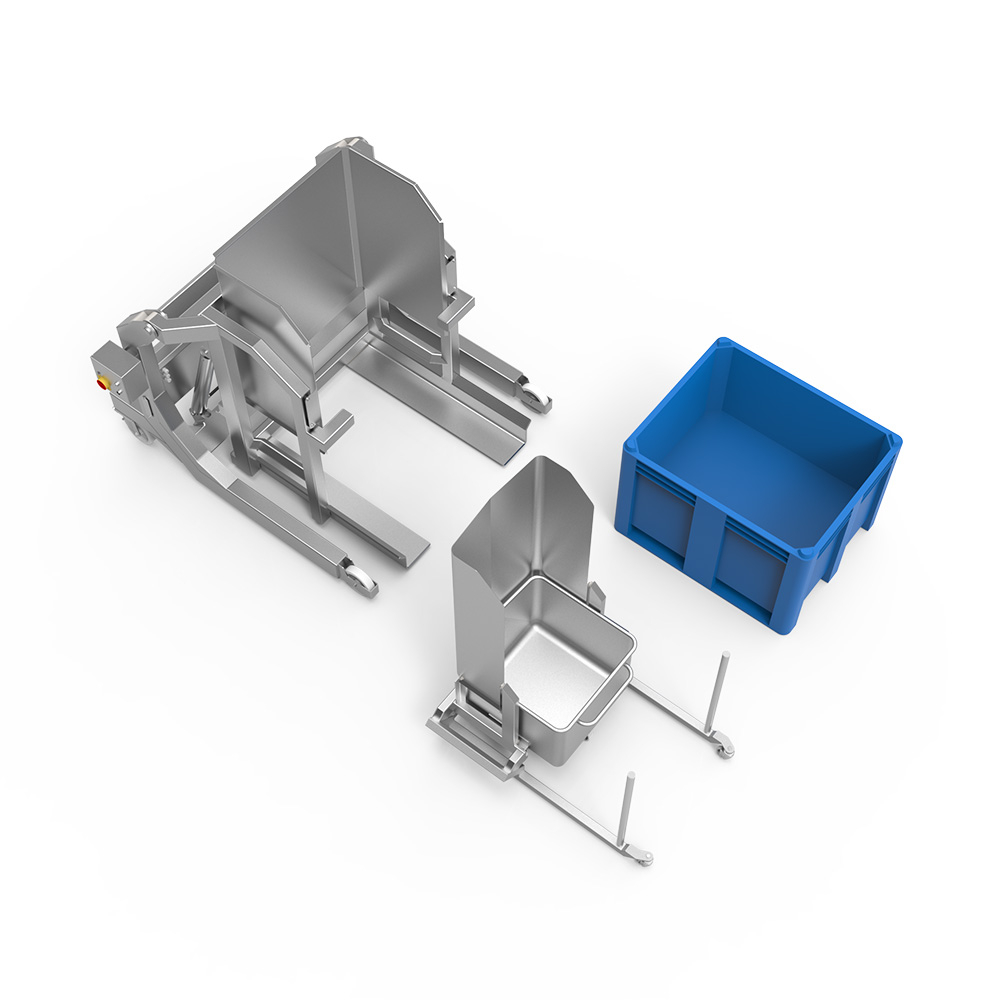

Combination Tipper

# Part Number:
600/HT4-5073

Dolav combination tipper designed for fast, efficient and safe product transfer with minimal manual unloading when using Dolav containers. The combination tipper features a lift carriage which allows an adaptor frame to be docked, this frame can lift 200L and 300L DIN9797 Eurobins. This allows for greater flexibility when product loading.

  • Offers ease of operation, low maintenance and fast clean down
  • 1500kg Capacity
  • Hygienic design constructed from 304 grade Stainless Steel
  • Tipping Height: Up to 1350mm
  • Tipping Angle up to 125 degrees
  • Mobile or Bolt Down Base models available
  • Battery or 3 Phase Mains Power options


MORE Combination Tipper FEATURES


Options Available

* Required Fields

£0.00

  • Designed for lifting Dolav containers, Eurobins, plastic pallet boxes, CHEP or industrial containers using an adaptor frame on the lift carriage.
  • Reduces operator bending fatigue by providing a constant access height for unloading product.
  • Fully mobile with battery operation which allows the unit to be used anywhere required within the working environment.
  • Material: 304 grade Stainless Steel
  • Capacity: Dolav Container, 200L Eurobin or 300L Eurobin (depending on lift carriage used)
  • Maximum Tipping angle:  up to 125° from lowered position - 35° from horizontal
  • Tipping height: up to 1350mm
  • Finish: Bead Blast
  • Electrical Requirements: 12 volt battery or mains powered 3 phase 240v
  • Features:
    Electro-Hydraulically Powered
    1500kg S.W.L.
    2 fixed wheels, 2 swivel braked castors with nylon wheels.
