Single Column Tipper Guarded

Single Column Tipper Guarded

Static Adjustable Height Tipper

Adjustable Height Single Column Tipper Static

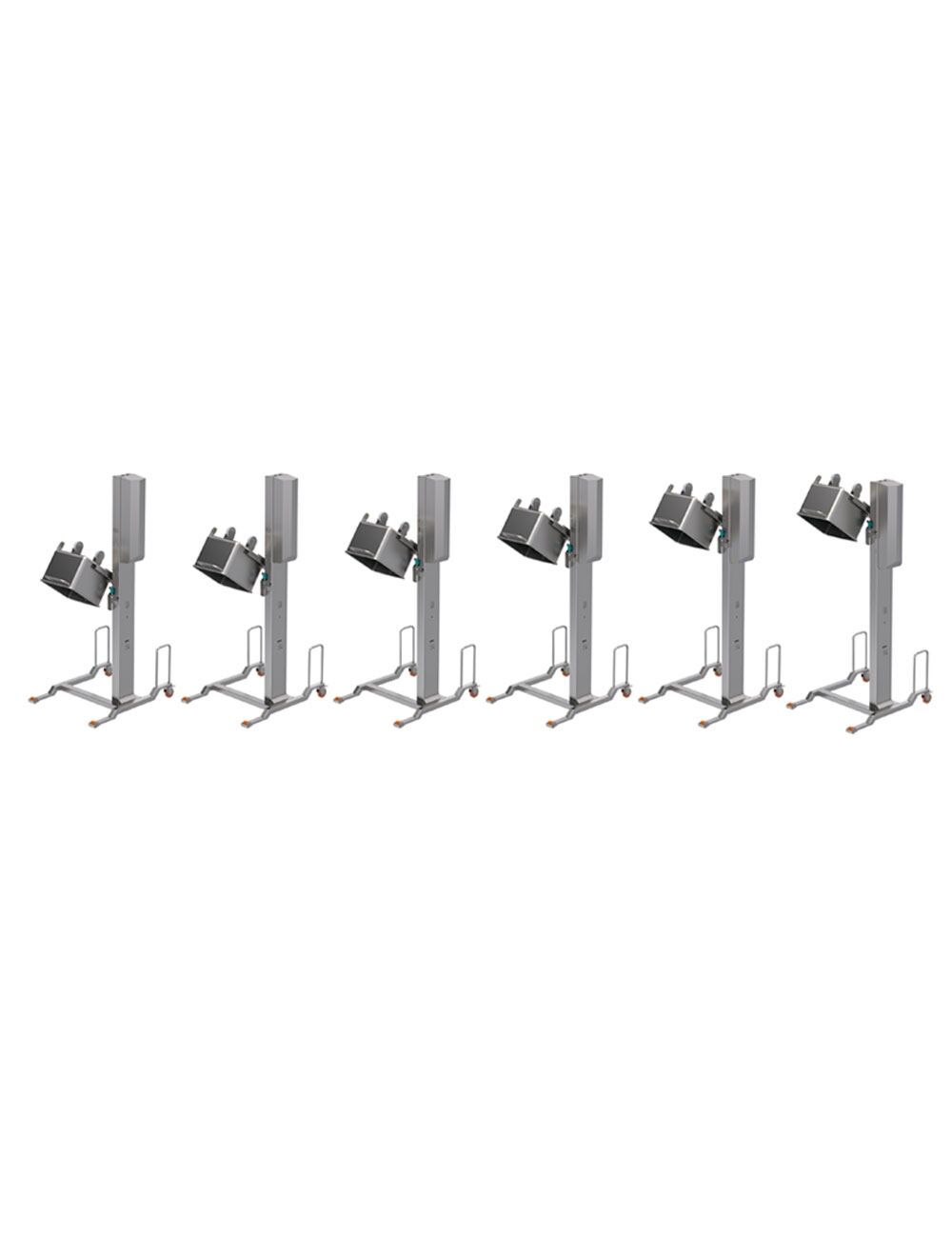

Adjustable Height Single Column Tipper Mobile

Mobile single column tipper which allows the user to adjust the tip height as required to facilitate process changes, equipment changes or future works.

  • Designed for DIN9797 200L & 300L Eurobins including Clean Line compatible Eurobins
  • Significantly reduces the risk of injury and accidents caused through manual handling operations
  • Tipping height for 200L Eurobins adjustable between 1500-2500mm with 200mm increments
  • Tipping height for 300L Eurobins adjustable between 1293-2293mm with 200mm increments

Speak to us about in stock equipment


£0.00
SKU CODE: 600/SCM-4905
  • SYSPAL single column lifter increases productivity, efficiency and saves on labour
  • Significantly reduces the risk of injury and accidents caused through manual handling operations
  • Hygienically designed and manufactured in 304 grade stainless steel to IP65 standards specifically for the food & pharmaceutical industry
  • Up to 350kg SWL
  • Tipping angle: Up to 55° from horizontal
  • Electrical requirements: 400v 3 phase
  • Compliant with BS EN 13288 Food processing machinery (bowl lifting and tilting), BS EN 1672-2 Food processing machinery and DIN 9797 Transport carts and take-up systems

Safety features:

  • Lift column chain guard
  • Mechanical chain-break safety column – Prevents Eurobin falling in the event of a chain failure
  • Foot operated electro/mechanical safety mechanism on bin location arms – Prevents Lifter from operating if Eurobin is not located in the lift carriage correctly
  • Tipping mechanism - Roller tipping - Allows quick bin rotation and an increased tip angle of up to 55°. This assists in transfer of difficult or sticky product. Typical applications would be high viscosity liquids, dough and pastry products or prepared/IQF vegetables. (For use with 200 and 300 litre Eurobins as well as other containers.)
