Adjustable Height Single Column Tipper Static

# Part Number:
600/SCB-1339

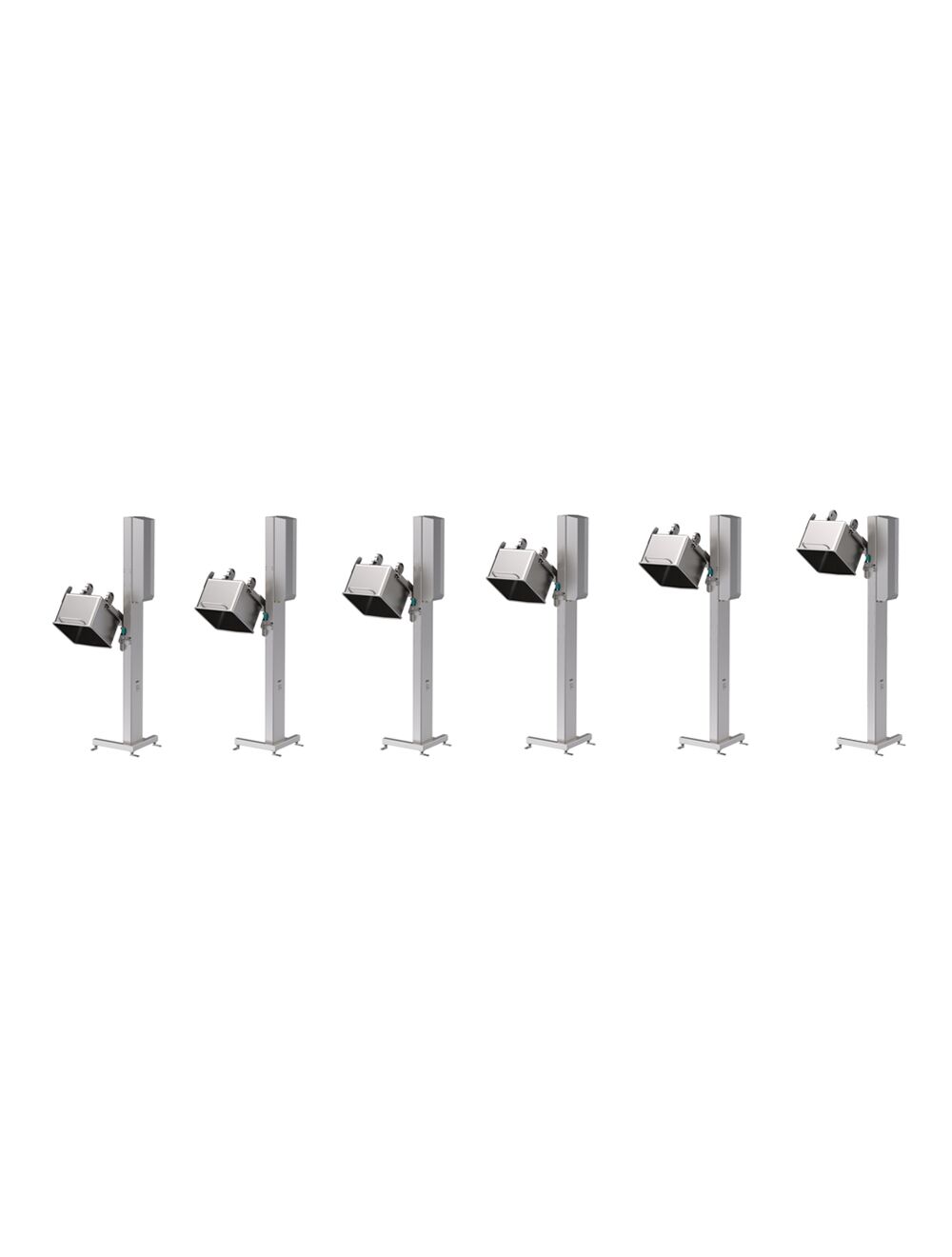

Static adjustable height single column tipper which allows the user to adjust the tip height as required to facilitate process changes, equipment changes or future works.

  • Designed for DIN9797 200L & 300L Eurobins including Clean Line compatible Eurobins
  • Significantly reduces the risk of injury and accidents caused through manual handling operations
  • Tipping height for 200L Eurobins adjustable between 1500-2500mm with 200mm increments
  • Tipping height for 300L Eurobins adjustable between 1293-2293mm with 200mm increments

Speak to us about in stock equipment


If you have any questions about this product please call our friendly sales team on +44(0)1952 883188 or complete our contact form to receive a call back

MORE Adjustable Height Single Column Tipper Static FEATURES


Enquire For Price

  • SYSPAL single column lifter increases productivity, efficiency and saves on labour
  • Significantly reduces the risk of injury and accidents caused through manual handling operations
  • Hygienically designed and manufactured in 304 grade stainless steel to IP65 standards specifically for the food & pharmaceutical industry
  • Up to 350kg SWL
  • Tipping angle: Up to 55° from horizontal
  • Electrical requirements: 400v 3 phase
  • Compliant with BS EN 13288 Food processing machinery (bowl lifting and tilting), BS EN 1672-2 Food processing machinery and DIN 9797 Transport carts and take-up systems

Safety features:

  • Lift column chain guard
  • Mechanical chain-break safety column – Prevents Eurobin falling in the event of a chain failure
  • Foot operated electro/mechanical safety mechanism on bin location arms – Prevents Lifter from operating if Eurobin is not located in the lift carriage correctly
  • Tipping mechanism - Roller tipping - Allows quick bin rotation and an increased tip angle of up to 55°. This assists in transfer of difficult or sticky product. Typical applications would be high viscosity liquids, dough and pastry products or prepared/IQF vegetables. (For use with 200 and 300 litre Eurobins as well as other containers.)
