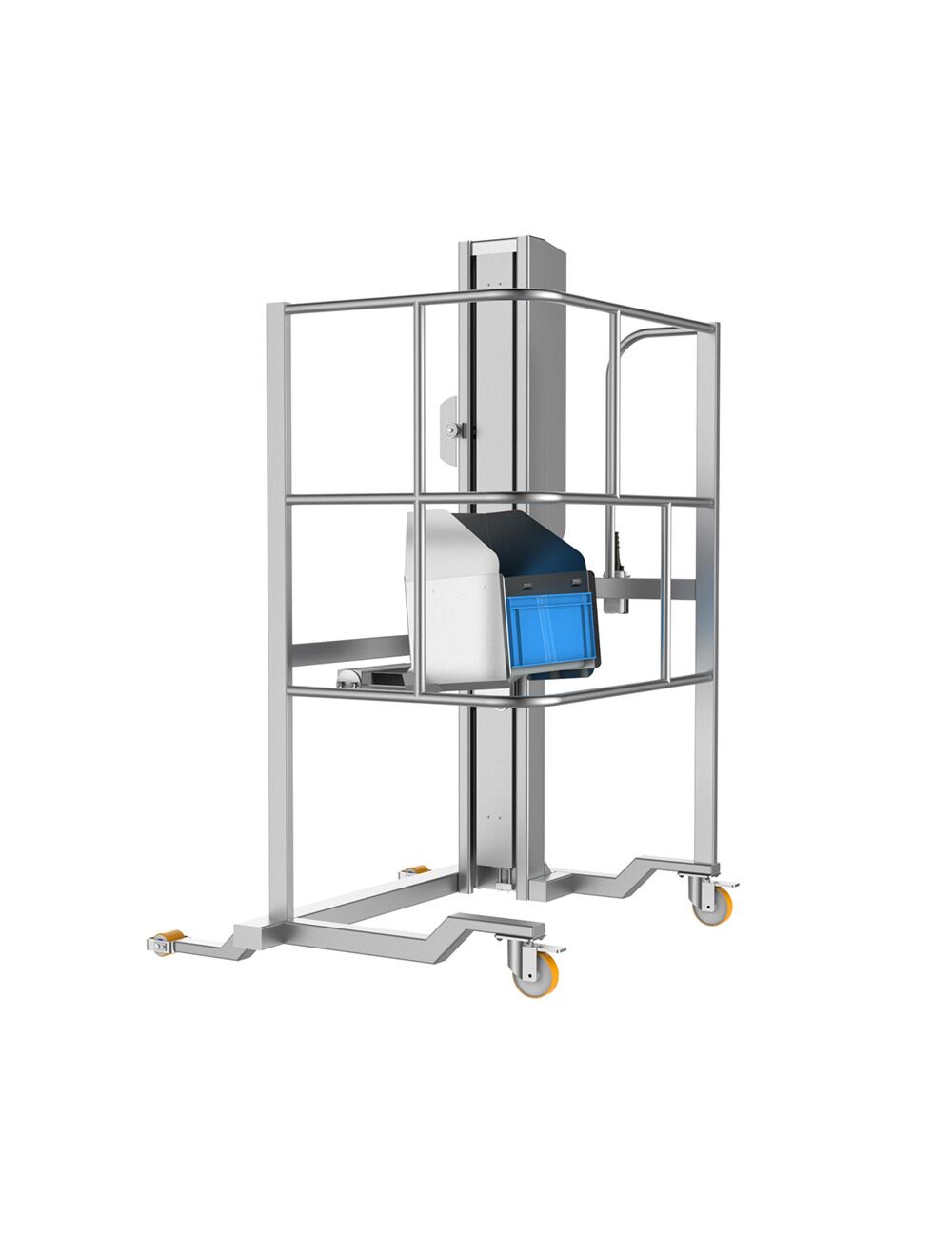

Single Column Tipper - Trays

# Part Number:
Single-column-tipper-trays

Single column tipper specifically designed for the lifting and transferring of trays.

  • SYSPAL Single Column Tippers increases productivity, efficiency and saves on labour
  • Significantly reduces the risk of injury and accidents caused through manual handling operations
  • Hygienically designed and manufactured in 304 grade stainless steel to IP65 standards specifically for the food & pharmaceutical industry
MORE Single Column Tipper - Trays FEATURES


Enquire For Price

  • Column heights, and tipping profiles designed to suit individual handling applications
  • Tipping angle: 145° max or 55° from horizontal
  • Safe working load: 100kg
  • Electrical requirements: 400v 3 phase
  • Left or right hand lift columns
  • Lifting carriages designed to accommodate 600x400 eurotrays. Other tray sizes used within the food industry can be accommodated
  • Mobile or bolt down versions available
  • Available with various guarding options
Safety features:
  • High & low level lift carriage limit switches
  • Lift column chain guard
  • Mechanical chain-break safety column – Prevents eurotray falling in the event of a chain failure
  1. Plastic Standard 600 x 400 Tray
    Plastic Standard 600 x 400 Tray
  2. Single Column Tipper Bolt Down
    Single Column Tipper Bolt Down
  3. Single Column Tipper Mobile
    Single Column Tipper Mobile
  4. Single Column Tipper Skeletal
    Single Column Tipper Skeletal
