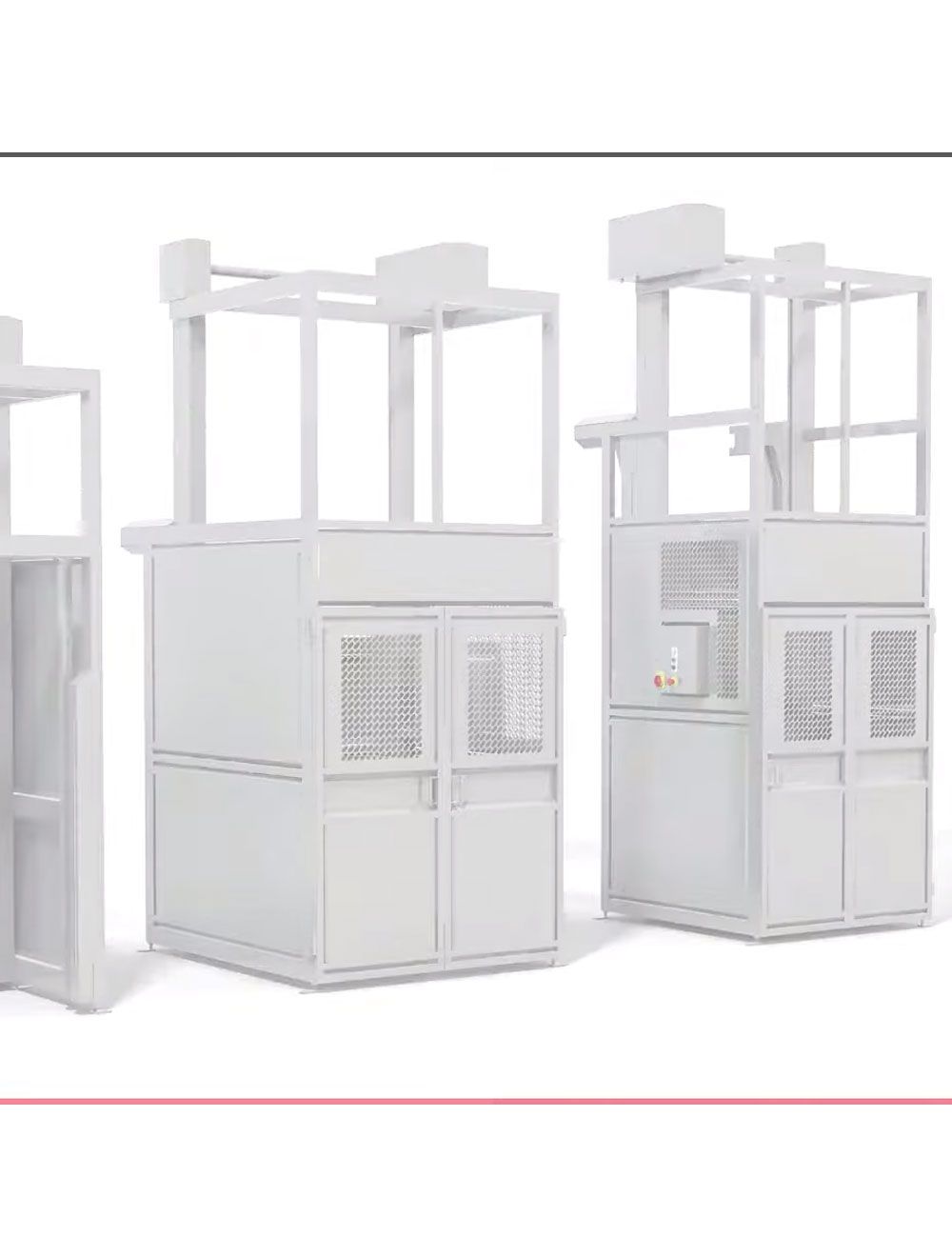

Single Column Tipper Mobile Bakery Bowl

Mobile Mixing Bowl Single Column Tipper

Bowl Column Tipper

The double column tipper is ideal for the safe handling of mixing bowl containers, flexibly designed to accommodate bespoke tip heights, tip angles and production line integration options to meet individual needs.

  • Can handle up to 1500kg of product inside mixing bowl containers
  • Grade 304 Stainless Steel construction
  • Hygienic design
  • Operator control functions and production line integration options available
  • Enables fast and efficient handling of various products
  • Interlocked guarding as standard
SKU CODE: 600/DC300
  • These lifters can be designed to tip a variety of containers and bowls with weights at heights to suit most applications
  • Grade 304 Stainless Steel
  • Enables fast and efficient handling of various products
  • Can be supplied with guarding and interlocking gates for safety
  • Finish: Bead Blast
  • Electrical Requirements: 400 volt 3 phase neutral and Earth
  • Control voltage: 24 volts
  • Protection: IP65
  • Maximum S.W.L: 600-1500kg
  • Tipping angle range:135° max - 45° from horizontal position
  • Features:
    Hold to run
    Tested to 1½ times SWL
    Lifting via duplex chains
  • Options:
    Can be designed to lift most vessels used in the food industry
    Guarding with interlocked gates
  • Syspal designs and maufactures a wide range of tippers and lifters to suit most requirements
