TECHNICAL SPECIFICATION

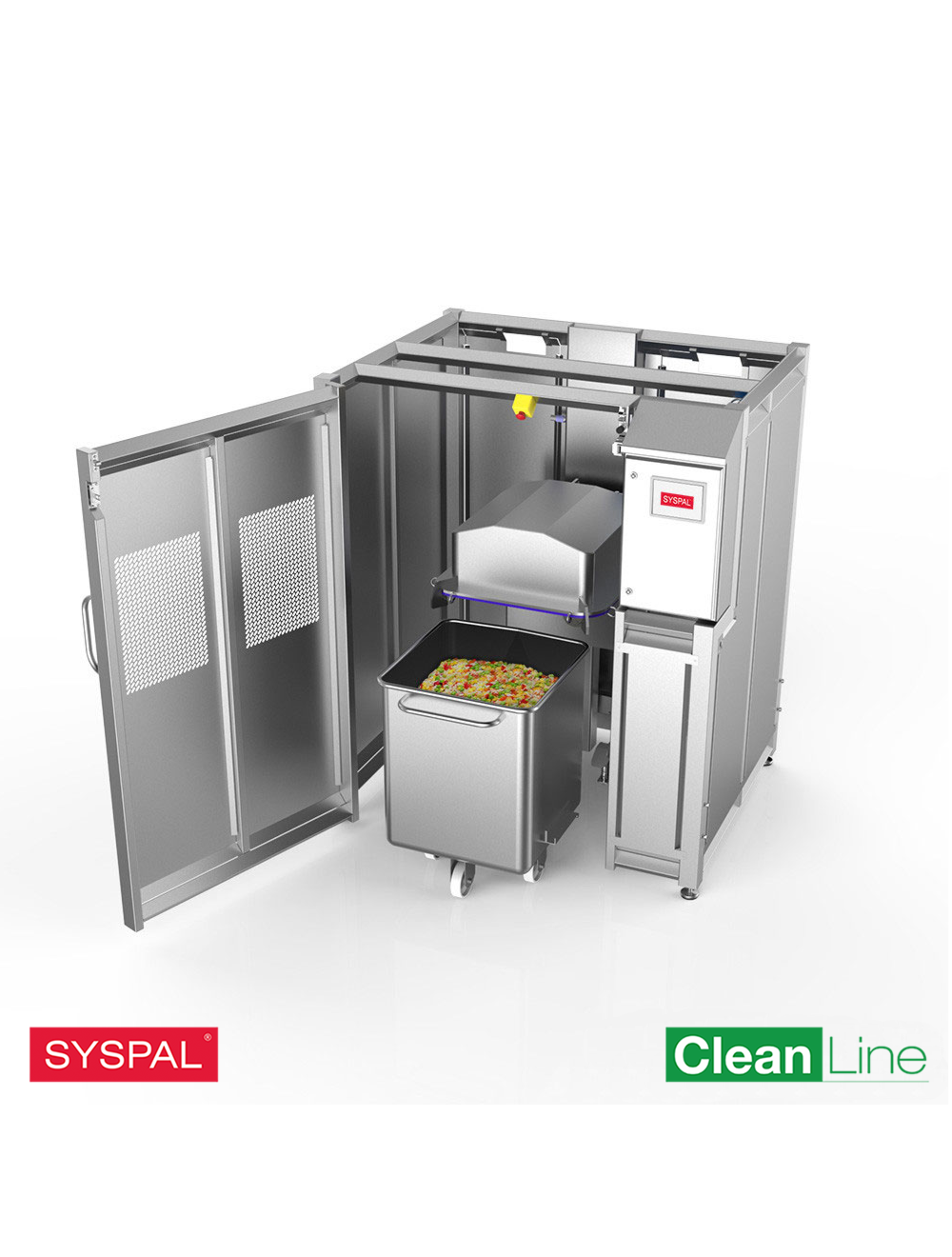

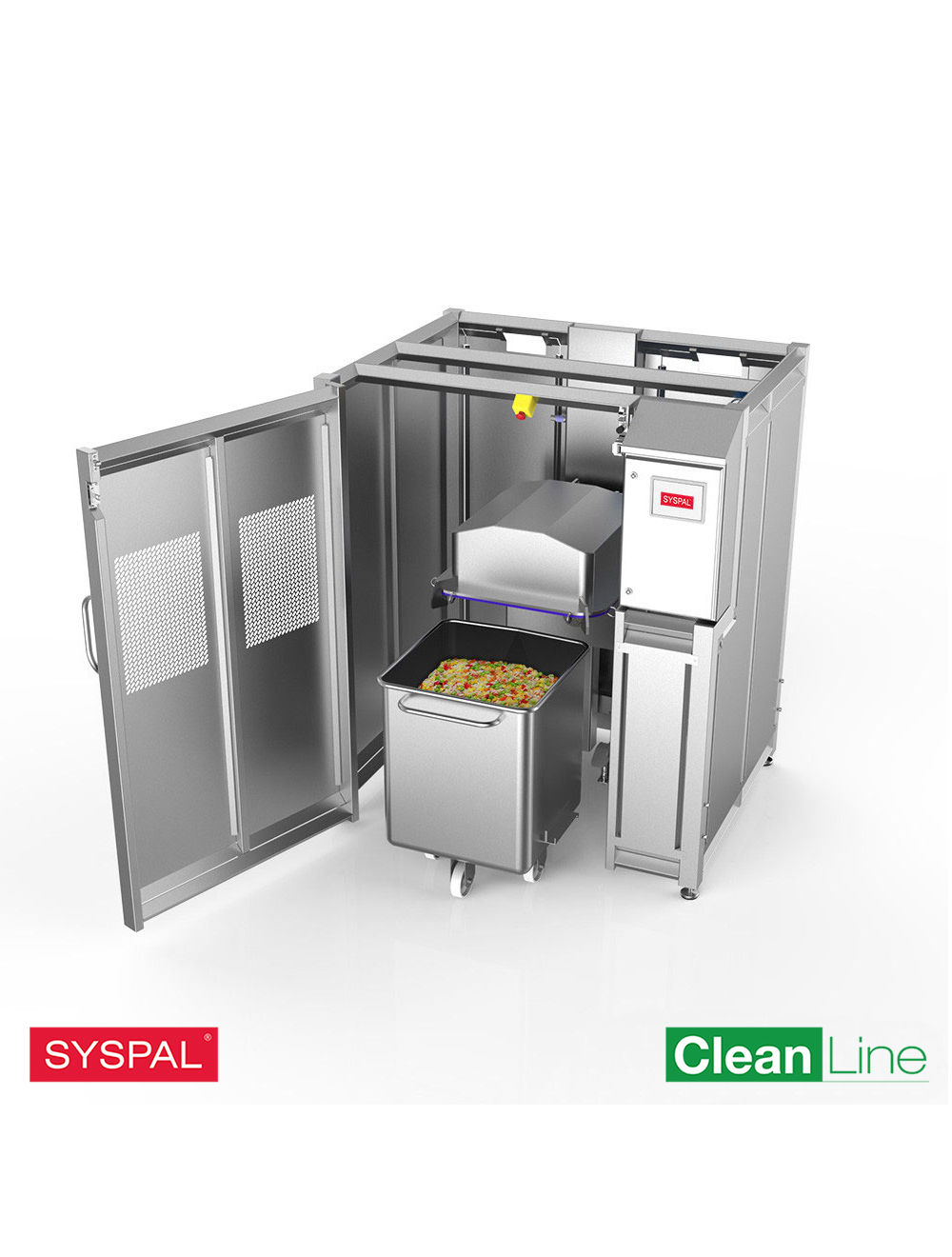

The SYSPAL range of Eurobin Tumblers are specifically designed to offer high quality, consistent and safe mixing of food ingredients. Industry standard DIN9797 Eurobins mix product without the use of rotating blades or paddles. This unique method of mixing prevents “dead-spots” that often occur as a result of Z-blade or paddle mixing. Delicate products are mixed effectively with significant reduction in damage, resulting in the highest levels of mix consistency and final product presentation. The combination of SYSPAL’s Eurobin Tumbler and Single Bin Solution range enables weighing, mixing, tipping, storage and washing to be carried out using a single Eurobin.
Key product features include:
- Significantly reduces product damage due to the non-use of rotating Z-blades or paddles
- Increased production efficiency by reducing product transfer and handling when integrated into the SYSPAL Single Bin Solution process
- Large capacity hood and user speed control ensures free-movement of product while tumbling, ensuring the best quality mix in the shortest period of time
- User friendly operator controls via panel mounted HMI display
- Reduces injury risks associated with manual handling
Processes:
- Mixing
- Blending
- Coating
- Massaging
- Tumbling
- Marinating
- Infusing
Small sample of products ideally suited to this application:
- Chicken wings, drumstick and thighs for marinating
- Ribs and coated meats with dry rubs
- Potato wedges with seasoning
- Prepared root vegetables with herbs
- Nutraceutical products
- Material: 304 Stainless Steel
- Finish: Bead blast
- Electrical Requirements: 400V 3 Phase 50-60hz
- Pneumatic Requirements: 6 bar air supply
- Motor Size: 3 kW
- Protection: IP65 rated electrical enclosure
- S.W.L: 350kg
