Multipurpose Lifter - Reel Lifter

Multipurpose Lifter - Reel Lifting

Multipurpose Lifter - Form and Fill

Multipurpose Lifter - Form and Fill

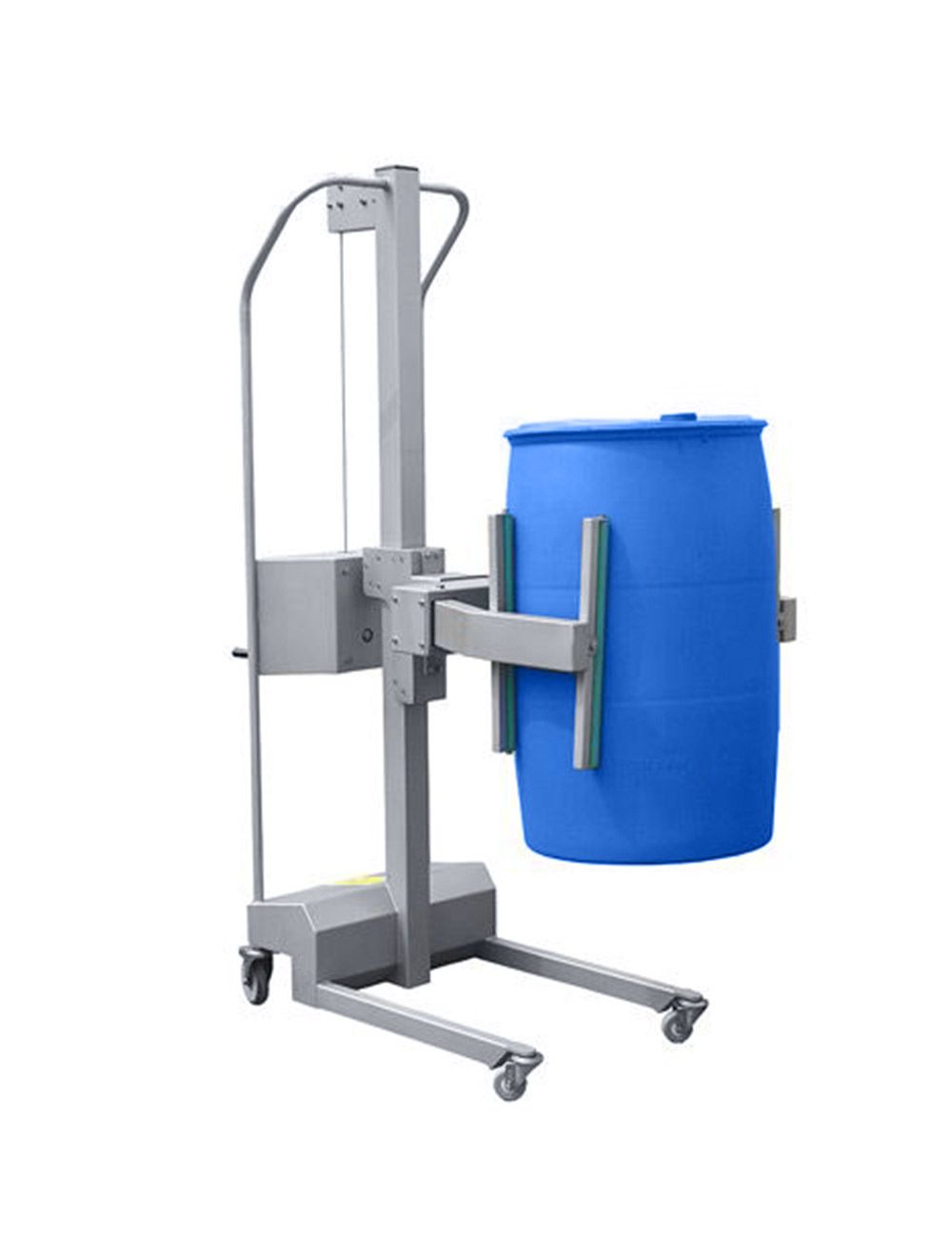

Multipurpose Lifter - Barrel Lifting

The Multipurpose lightweight lifting machine has an attachment designed specifically for lifting barrels, small bins, and circular vessels. The attachment has a maximum safe working load of 100kg.

  • L 885 x W 500 x H 2070
  • Lightweight, mobile, battery-operated lifting and loading machine.
  • Capability to lift reels directly from pallets.
  • Saves on labour and increases production efficiency.

SKU CODE: 608/EL5-barrel-lifting

Ideal for transporting barrels and containers, the tool uses a clamp to hold the container securely and using the manual winch you can lift the container to a safe height for transport and use the mobile Multipurpose lifter to transfer them to where they’re required. Upon arrival at the required destination, there is a rotation mechanism which allows you to invert the bin to decant product into other vessels, hoppers, bins etc.

The clamp, lift and bi-directional rotation functions of the Multipurpose lifter eliminate the need for manual handling of the barrels or containers, reducing the risk of injuries.

  • Maximum Load Capacity: 100kg - Dependent on attachment and application.
  • Maximum Lift (mm): 2000mm approx
  • Finish: Bead Blast
  • Power Supply Features:
    240 volts single phase
    Sealed gel battery
    Separate battery charger and power lead
  • Protection: IP65
  • Features:
    Quick-change adapter for attachment switchover
    Variable height push handle
    Soft start drive for accurate positioning of attachment
    Up / Down controls on remote handset
    4 swivel wheels
    Braked rear wheels
  • Options:
    Manual winch unit available instead of battery powered
    Extended or shortened column height
    Base frame available longer or wider to suit applications
    110 volts charger
    Grade 316 Stainless Steel
    Adaptor plate for use with additional attachments
    Rubber or anti-static wheels.
