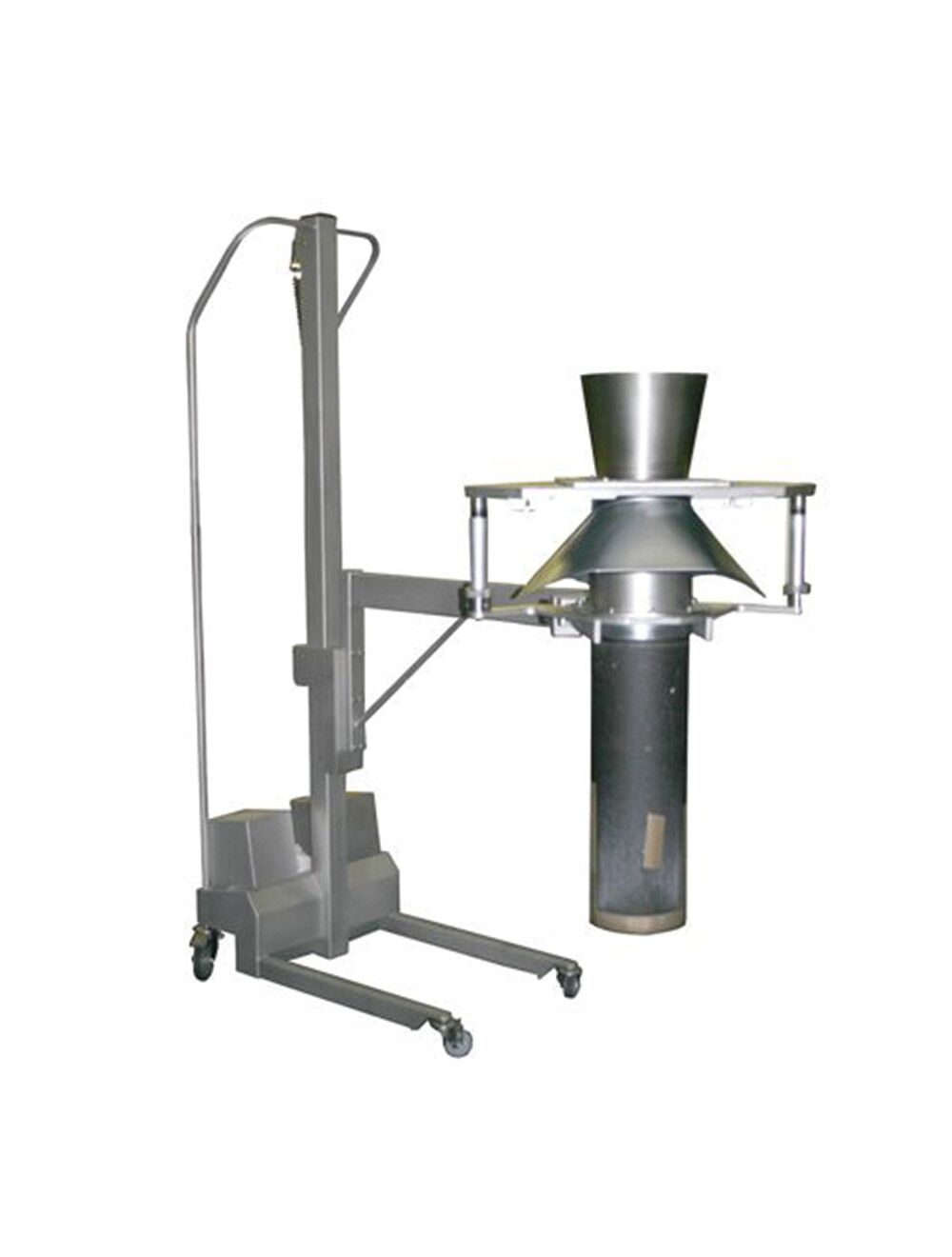

Multipurpose Lifter - Form and Fill

During the bagging and filling production process multihead weighers feed bagging machines through the use of form and fill tools. These tools range in size and are used to form, fill and seal bags or product as part of a packaging process. This involves packaging material being fed into the form and fill tool from a reel, which is then opened and formed by the tool before being fed by the multi-head weigher from above. Once full the bag is sealed ready to be shipped to the shelves of the supermarkets we see every day. It's often the case that multiple different form and fill tools are required to cover the wide range of different types of product and packaging available on the market.

  • L 885 x W 500 x H 2070
  • Lightweight, mobile, battery operated lifting and loading machine.
  • Capability to lift reels directly from pallets.
  • Saves on labour and increases production efficiency.

£0.00
SKU CODE: 608/EL5-form-and-fill

This creates the need for the transportation and storage of a variety of different form and fill tools. Most tools weigh around 40kg and are often stored away from the packaging line which presents a manual handling issue. To provide a safe and efficient solution for the transferring and transportation of these form and fill tools we recommend using a multipurpose lifter. This can make the process safer as it ensures the form and fill tools can be loaded and unloaded at comfortable heights and eliminates the need for manually carrying the tool over distance.

  • Maximum Load Capacity: 100kg - Dependent on attachment and application.
  • Maximum Lift (mm): 2000mm approx
  • Finish: Bead Blast
  • Power Supply Features:
    240 volts single phase
    Sealed gel battery
    Separate battery charger and power lead
  • Protection: IP65
  • Features:
    Quick-change adapter for attachment switchover
    Variable height push handle
    Soft start drive for accurate positioning of attachment
    Up / Down controls on remote handset
    4 swivel wheels
    Braked rear wheels
  • Options:
    Manual winch unit available instead of battery powered
    Extended or shortened column height
    Base frame available longer or wider to suit applications
    110 volts charger
    Grade 316 Stainless Steel
    Adaptor plate for use with additional attachments
    Rubber or anti-static wheels.
