Eurobin Tilter

# Part Number:
600/HT1

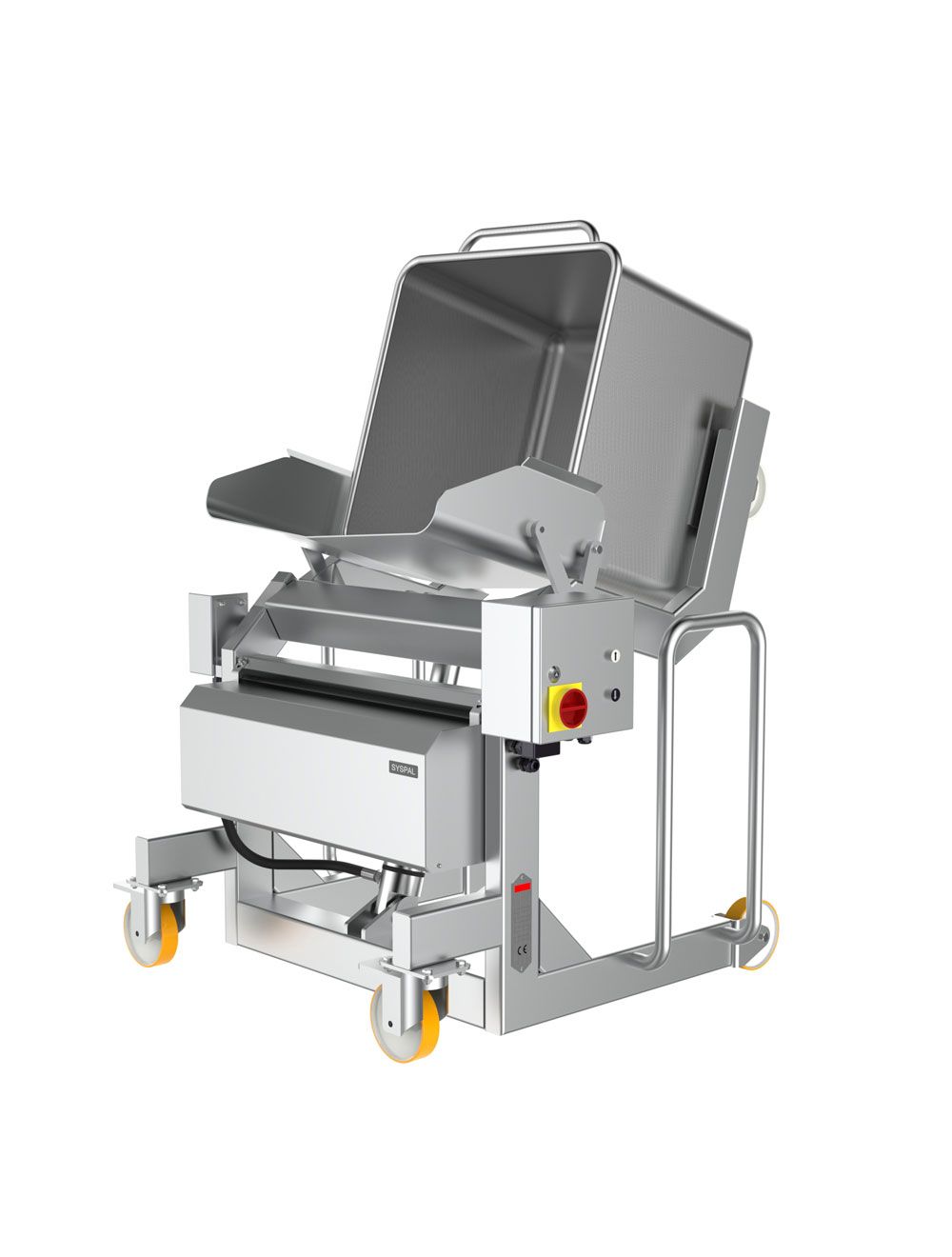

The SYSPAL Eurobin tilter has been designed to tilt Eurobins to a safe working height for manual product unloading.

  • Grade 304 stainless steel construction
  • Hygienic design
  • Designed for tilting with an additional 15° past horizontal to ensure as much product is extracted as possible
  • Compatible with both 200 and 300 litre Eurobins
  • Tilting angle: -15° from horizontal position - 105° max from lowered position
  • Reduces operator bending fatigue by providing a constant access height
  • Fully mobile design as standard, can be specified as a static model
  • Hold to run operator controls on both sides for maximum flexibility
Dimensions: (Length x Width x Height unless stated)
  • L1050 x W1200 x H1000
MORE Eurobin Tilter FEATURES


Enquire For Price

  • Grade 304 stainless steel
  • Bead blast finish
  • Capacity S.W.L. 350kg
  • Designed for lifting Eurobin containers to a safe height for manual unloading by hand
  • Tilting angle range: -15° from horizontal position - 105° max from lowered position
  • 900mm tilting height
  • Designed for tilting with extra 15 degrees to ensure as much produce is extracted as possible
  • Reduces operator bending fatigue by providing a constant access height
  • Fully mobile
  • Battery or mains powered
  • Mains requirements:400v 3 phase
  • Battery operation allows the unit to be used anywhere required within the working environment
  • Can also be designed to accommodate other containers such as bowls or tanks
  • Electro-hydraulically powered
  • 2 fixed wheels, 2 swivel braked castors with nylon wheels
