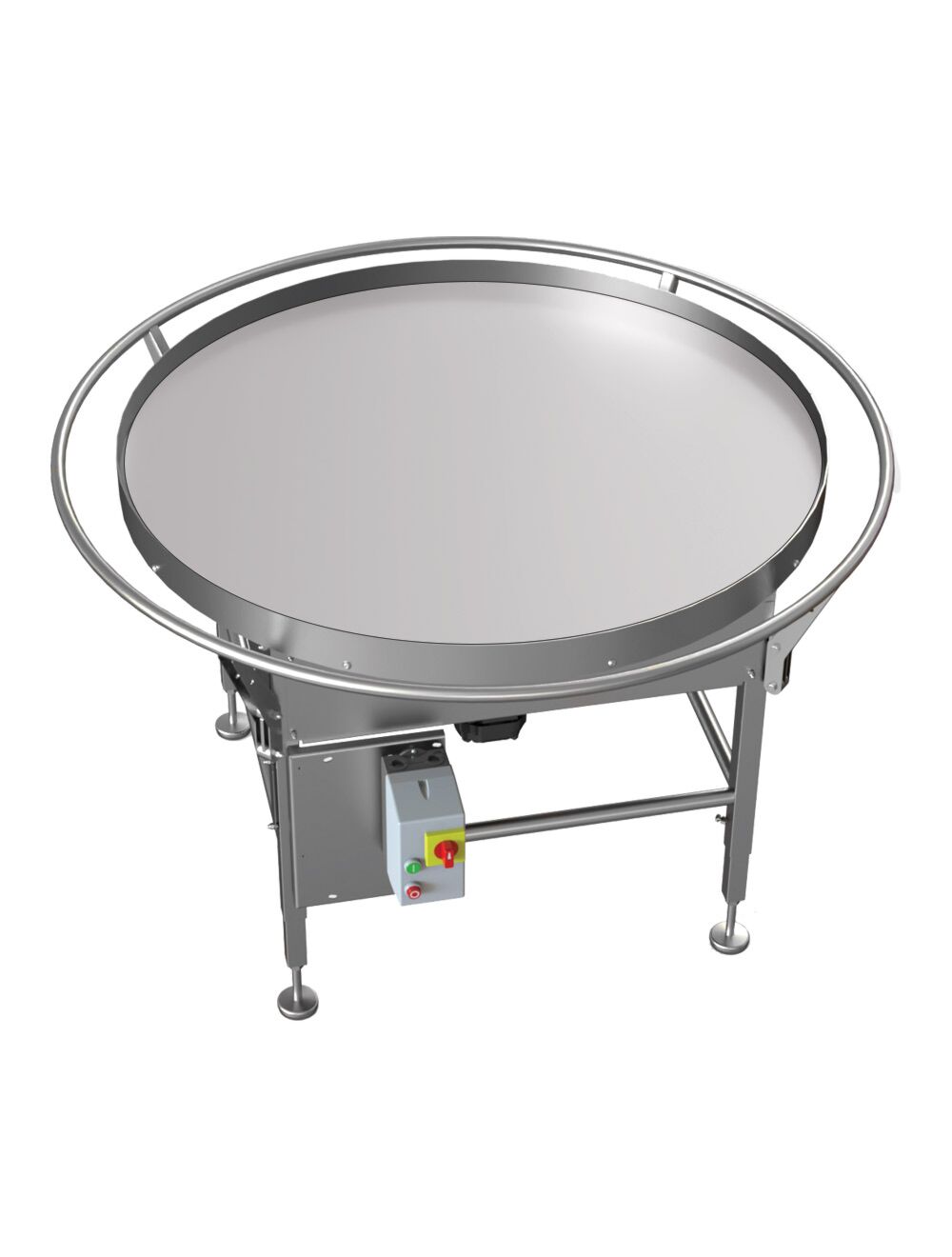

4 Leg Rotary Turntable

# Part Number:
516/00605
  • 304 stainless steel construction
  • Removable tops to aid cleaning & maintenance
  • Unique friction drive system for safe operation
  • HDP top with stainless top option
  • Fixed or variable speed control options
  • Outer perimeter guard rail
  • Product guide rail & diverter options available
  • 850mm+/- 150mm adjustable height with levelling feet
  • Mobile options available
MORE 4 Leg Rotary Turntable FEATURES


Availability: In stock

Product Name Price Qty
4 Leg Rotary Turntable - Ø800mm x H850mm -
SKU: 516/006050

POA
4 Leg Rotary Turntable - Ø1000mm x H850mm -
SKU: 516/006051

POA
4 Leg Rotary Turntable - Ø1200mm x H850mm -
SKU: 516/006052

POA
4 Leg Rotary Turntable - Ø1500mm x H850mm -
SKU: 516/006053

POA
4 Leg Rotary Turntable - Ø1800mm x H850mm -
SKU: 516/006054

POA
4 Leg Rotary Turntable - Ø2000mm x H850mm -
SKU: 516/006055

POA

Features

  • 304 stainless steel construction
  • Removable tops to aid cleaning & maintenance
  • Unique friction drive system for safe operation
  • HDP top with stainless top option
  • Fixed or variable speed control options
  • Outer perimeter guard rail
  • Product guide rail & diverter options available
  • 850mm+/- adjustable height with levelling feet
  • Mobile options available

Controls

  • Plastic ‘fixed speed’ control IP65 rated
  • Wired to 2.0 metres flying lead fitted with IP67 rated ‘Red’ 3 pin 16A plug
  • 415V-3Ph-50HZ electrical supply

  • Plastic ‘variable speed Inverter’ control IP66 rated with +/- 50% speed variation
  • Wired to 2.0 metres flying lead fitted with IP67 rated Blue 3 pin 16A plug (or 13A to specify)
  • 240V-1Ph-50HZ electrical supply

  • Stainless steel ‘variable speed control panel’ IP66 rated with +/- 50% speed variation
  • External start/estop/speed control pot/isolator, controls
  • Wired to 2.0 metres flying lead fitted with IP67 rated Blue 3 pin 16A plug (or 13A to specify)
  • 240V-1Ph-50HZ electrical supply

Product guidance

  • Fixed or rotating product guide rails with flat up stand or tubular options
  • Diverter arms
  • Rail cut outs for infeed/out feed conveyors
  • Transfers ‘To and From’ adjacent equipment
  • Product accumulation guidance
