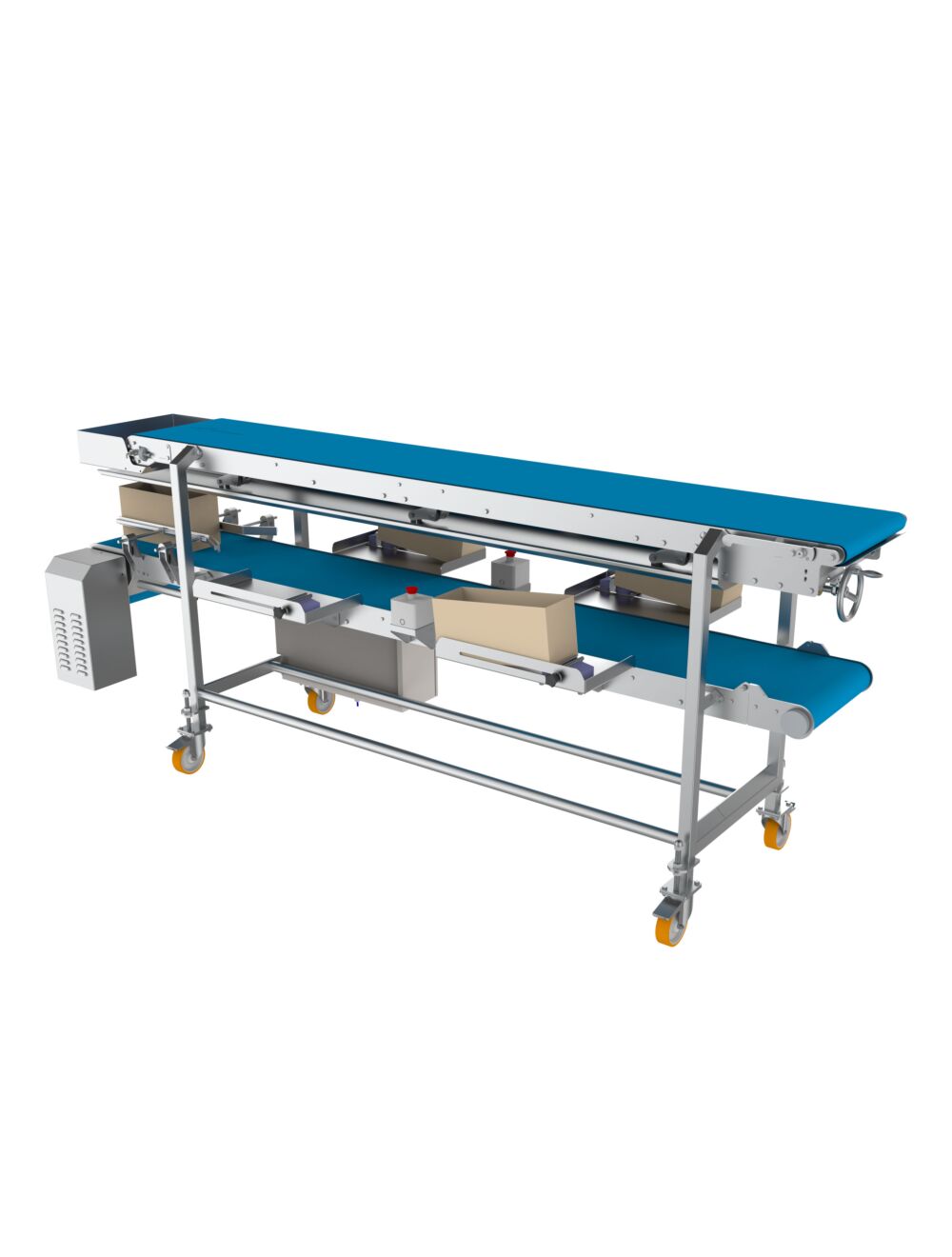

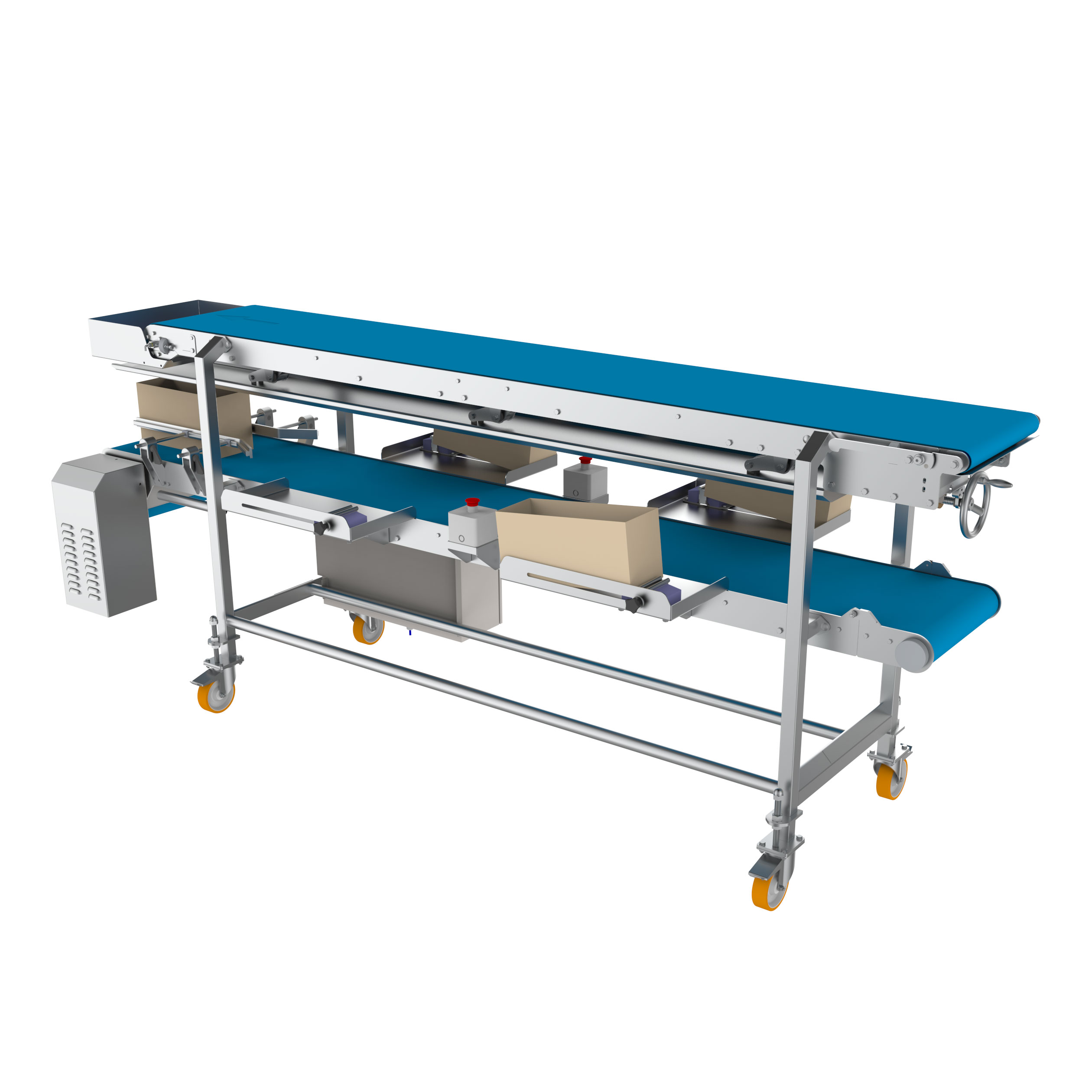

Packaging System Conveyor

# Part Number:
Packaging

Benefits of packing stations:

  • Ergonomic box loading for operators
  • Increased output
  • Improved operator utilisation
  • Integration of semi or fully automatic box sealing


  • Material: 304 Stainless Steel
  • First Stage Belt: True track seamless 2mm polyurethane
  • Second Stage Belt: Plastic modular
  • Speed: 8 - 24m/min variable
  • Power Requirements: 240 volt single phase 50Hz panel supply
  • Protection: IP65

If you have any questions about this product please call our friendly sales team on +44(0)1952 883188 or complete our contact form to receive a call back

MORE Packaging System Conveyor FEATURES


Enquire For Price

  • Two stage packing conveyor for four operatives with adjustable box hold down facility, integral product tables and adjustable height personnel platforms.
  • First stage belt - Grip faced PU - 920mm infeed height to 1327mm working height. To handle packed product and present to the operators in a uniform manner.
  • Second stage belt - (Box outfeed) Plastic Modular belt 800mm working height complete with infinitely adjustable box hold down box height range = 125 to 290mm.
  • Adjustable height operator stands - giving the most ergonomic working position, adjustable from floor level to 240mm. Can be pivoted up to the conveyor in a vertical position providing easy access for cleaning.
  • Integral IP 65 control panel with remote emergency stops.
  • Hygienic and robust construction.
  • Stop/Start E-Stop.
  • Variable speed control for each conveyor.
