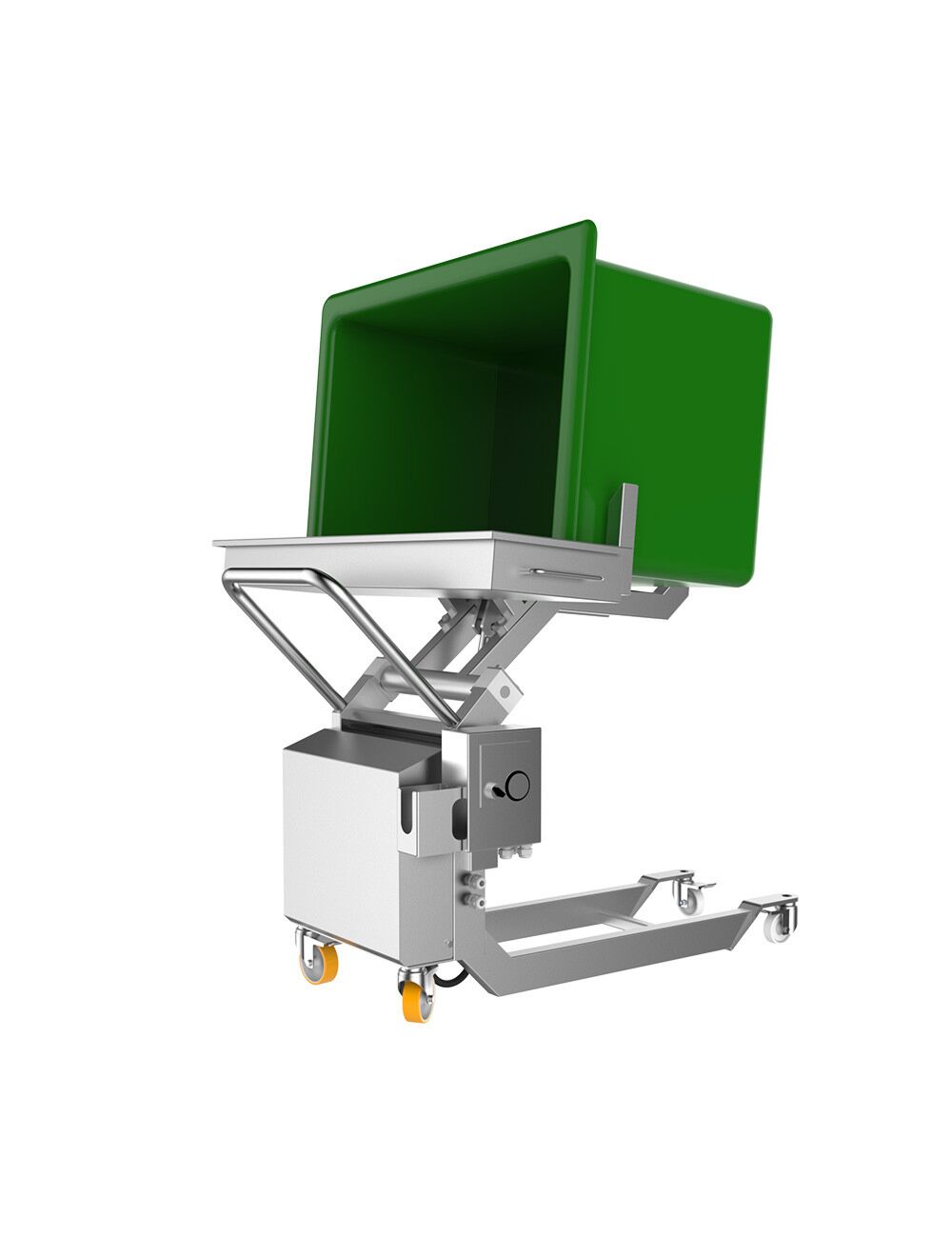

Container Tilter

# Part Number:
600/HT2-1012

The SYSPAL container tipper has been designed to increase efficiency and reduce the amount of manual handling required to empty .

  • Grade 304 stainless steel construction
  • Up to 100kg nominal capacity
  • Up to 85° tipping angle
  • Available with bolt down or mobile base
  • Bead blast finish
  • Bespoke transfer chutes available to suit specific applications
  • Can be integrated with a range of feed and transfer tables
MORE Container Tilter FEATURES


Options Available
£0.00

  • For safe emptying of onto tables, conveyors or other work surfaces
  • Grade 304 stainless steel construction
  • Bead blast finish
  • Reduces the possibility of injury caused by manual lifting of
  • Tipping angle range: Up to 85° max from lowered position
  • Max tipping height: up to 845mm
  • 0.5kw motor
  • Mains or battery powered(charger included)
  • IP65
  • Capacity S.W.L. up to 100kg
  • Control voltage 24 volts(mains) or 12 volts(battery)
  • Features a hold to run control
  • Electro-Hydraulically powered
  • Stainless steel hydraulic ram
