Double Column Tipper - Mixing Bowl

Bowl Column Tipper

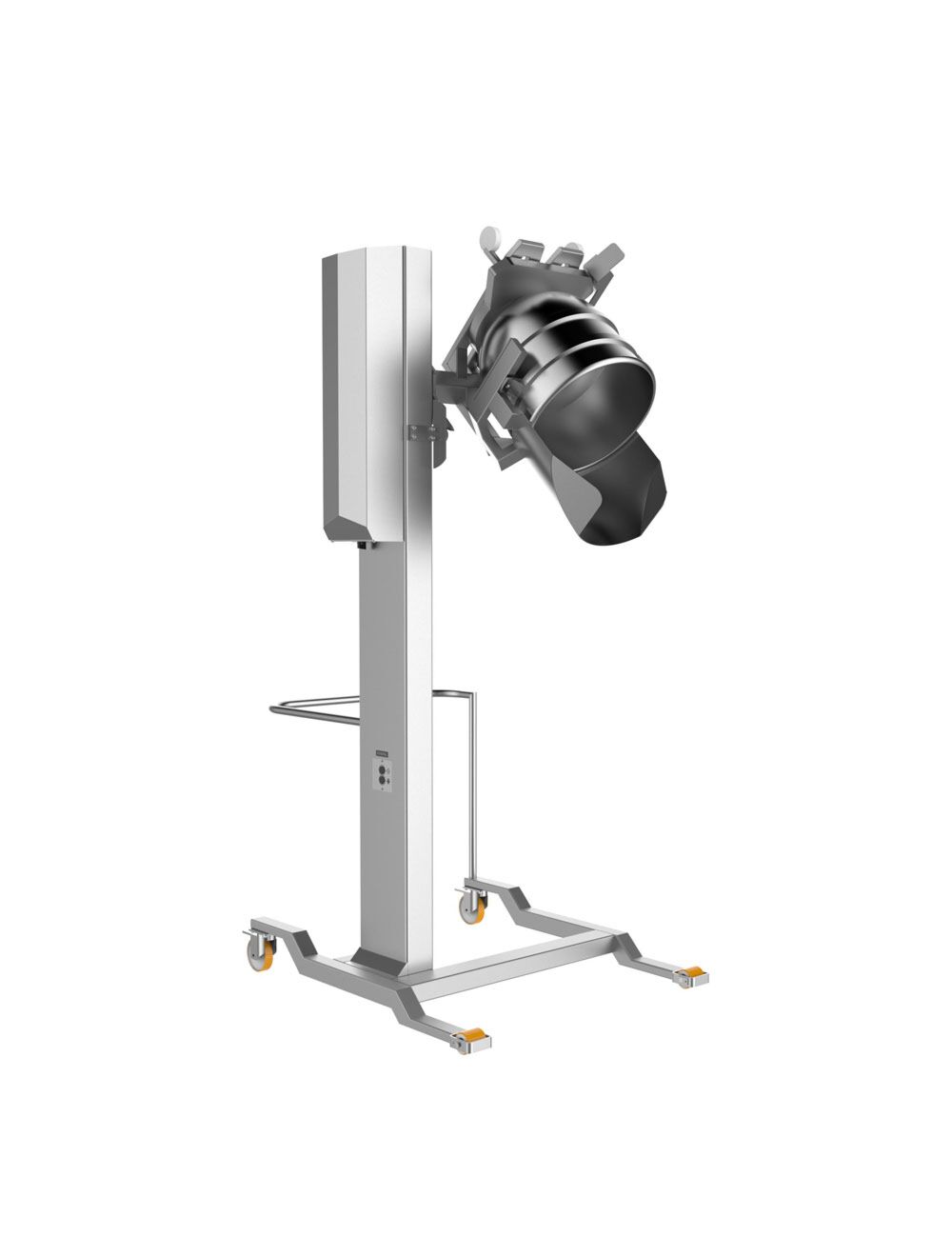

Mobile Mixing Bowl Single Column Tipper

  • SYSPAL single column tippers increases productivity, efficiency and saves on labour
  • Significantly reduces the risk of injury and accidents caused through manual handling operations
  • Hygienically designed and manufactured in 304 grade stainless steel to IP65 standards specifically for the food & pharmaceutical industry
  • Column heights, and tipping profiles designed to suit individual handling applications Up to 200kg SWL
  • Tipping angle: 450 max or 1350 from horizontal
  • Safe working load: 200kg
  • Electrical requirements: 415v 3 phase
  • Left or right hand lift columns
  • Lifting carriages can be designed to handle a wide range of bowls and bowls with dollies, used in the food industry
  • Mobile carriage frames available on a wide variety of the single column lifter models
  • Available with various guarding options

Safety features:

  • High & low level lift carriage limit switches
  • Lift column chain guard
  • Mechanical chain-break safety column – Prevents mixing bowl falling in the event of a chain failure
  • Foot operated electro/mechanical safety mechanism on bin location arms – Prevents Lifter from operating if mixing bowl is not located in the lift carriage correctly

Tipping mechanism options that can be specified:

Roller tipping - Allows quick bin rotation and an increased tip angle of up to 55°. This assists in transfer of difficult or sticky product. Typical applications would be high viscosity liquids, dough and pastry products or prepared/IQF vegetables. (For use with 200 and 300 litre Eurobins as well as other containers.)

Curve tipping - Allows a more controlled tip function up to a tip angle of up to 40°. Ideal for installations where height restrictions are a limiting factor. Typical applications would be low viscosity liquids, such as stocks, sauces or free flowing grains, powders etc. (For use with 200 and 300 litre Eurobins as well as other containers.)
