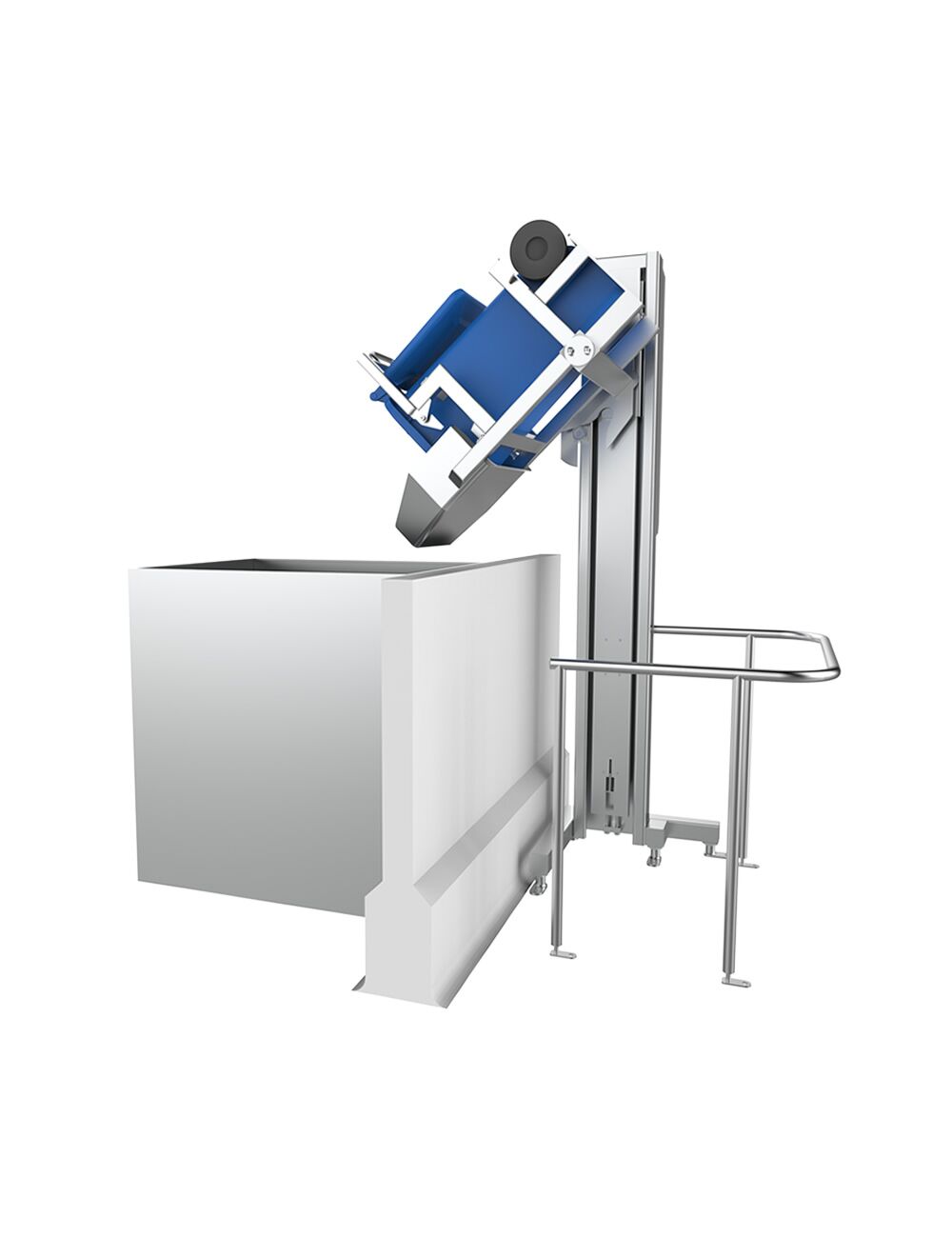

Wheelie Bin Tipper

# Part Number:

Industrial wheelie bin tipper for the safe disposing of waste in hygienic environments.

  • Fully welded grade 304 stainless steel construction
  • Unique lifting carriage for safe raising and lowering of industrial size wheelie bins
  • Mobile unit for easy repositioning or can be specified as a bolt down unit
  • 250kg nominal capacity
  • Syspal designs and manufactures a wide range of tippers and lifting equipment to suit most applications
Dimensions: (Length x Width x Height unless stated)
  • L1200 x W1350 x H705 + tipping height

If you have any questions about this product please call our friendly sales team on +44(0)1952 883188 or complete our contact form to receive a call back

MORE Wheelie Bin Tipper FEATURES

Enquire For Price

  • Grade 304 stainless steel construction fully welded, with unique lifting carriage design to lift and tip industrial wheelie bins
  • This single column tipper has a maximum lift load of 250kg and is easy to clean and maintain
  • Features a chain safety guard and operates on a hold to run principle
  • Eliminates accidents and injury caused by manual lifting
  • Syspal designs and manufactures a wide range of lifters and tippers to suit most applications

Tipping mechanism options that can be specified:

Roller tipping - Allows quick bin rotation and an increased tip angle of up to 55°. This assists in transfer of difficult or sticky product. Typical applications would be high viscosity liquids, dough and pastry products or prepared/IQF vegetables. (For use with 200 and 300 litre Eurobins as well as other containers.)

Curve tipping - Allows a more controlled tip function up to a tip angle of up to 45°. Ideal for installations where height restrictions are a limiting factor. Typical applications would be low viscosity liquids, such as stocks, sauces or free flowing grains, powders etc. (For use with 200 and 300 litre Eurobins as well as other containers.)
