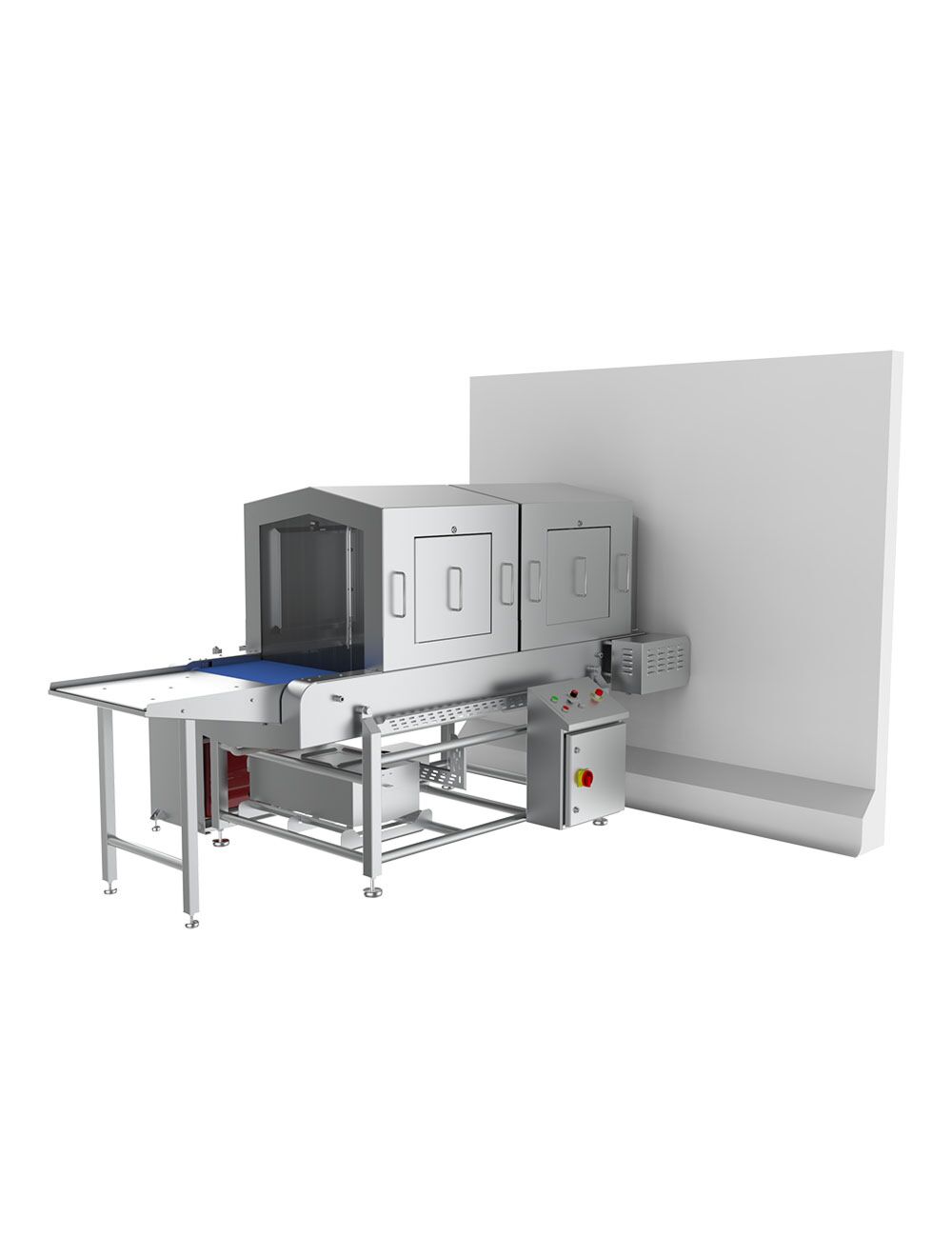

Sanitising Conveyor - Twin Spray Bar

# Part Number:
Sanitiser Twin Spray Bar
  • 304 grade stainless steel construction
  • Twin housing for extended spray duration
  • 360° spray bar for complete product coverage
  • Fully adjustable air blow off and extraction
  • Lift off stainless steel hood for easy cleaning
  • Different belt options available (See images)
MORE Sanitising Conveyor - Twin Spray Bar FEATURES


Enquire For Price

Sanitising conveyor for taking product from low-care to high-care with twin spray bar

  • Auto fill and full recirculation system
  • Manually loaded with remote Etop facility
  • Longer conveyor belt extends through transfer hatch into a high-care environment
  • Stainless steel hoods lift off for easy cleaning
  • Dosatron chemical dosing unit with adjustable dose rate of 0.2% - 2.0%
  • All legs complete with adjustable feet and bolt down facility
  • Infeed product sensor for operation start
  • Variable conveyor drive -10 mtrs/min @50Hz
  • Side mounted IP67 rated control panel
  • Removable sanitising solution tank with recirculation mesh filter, drain valve and overflow facility

Options Available:

  • Infeed and outfeed tables with perforated drain facility back to tank
  • Side guides through tunnel hood
  • Sanitising solution can be fed direct from customers sanitiser main tank to solenoid valve
  • Infeed and outfeed product sensors
  • 200 micron filter in addition to standard 50 micron filter
  • Straight through belt for small products and difficult to handle products
  • Twin belt to suit high care to low care segregation
  • Reversing belt type (straight through belt only) to allow product to be returned from high care
  • Panel controls can be internally mounted to prevent unauthorised adjustment
