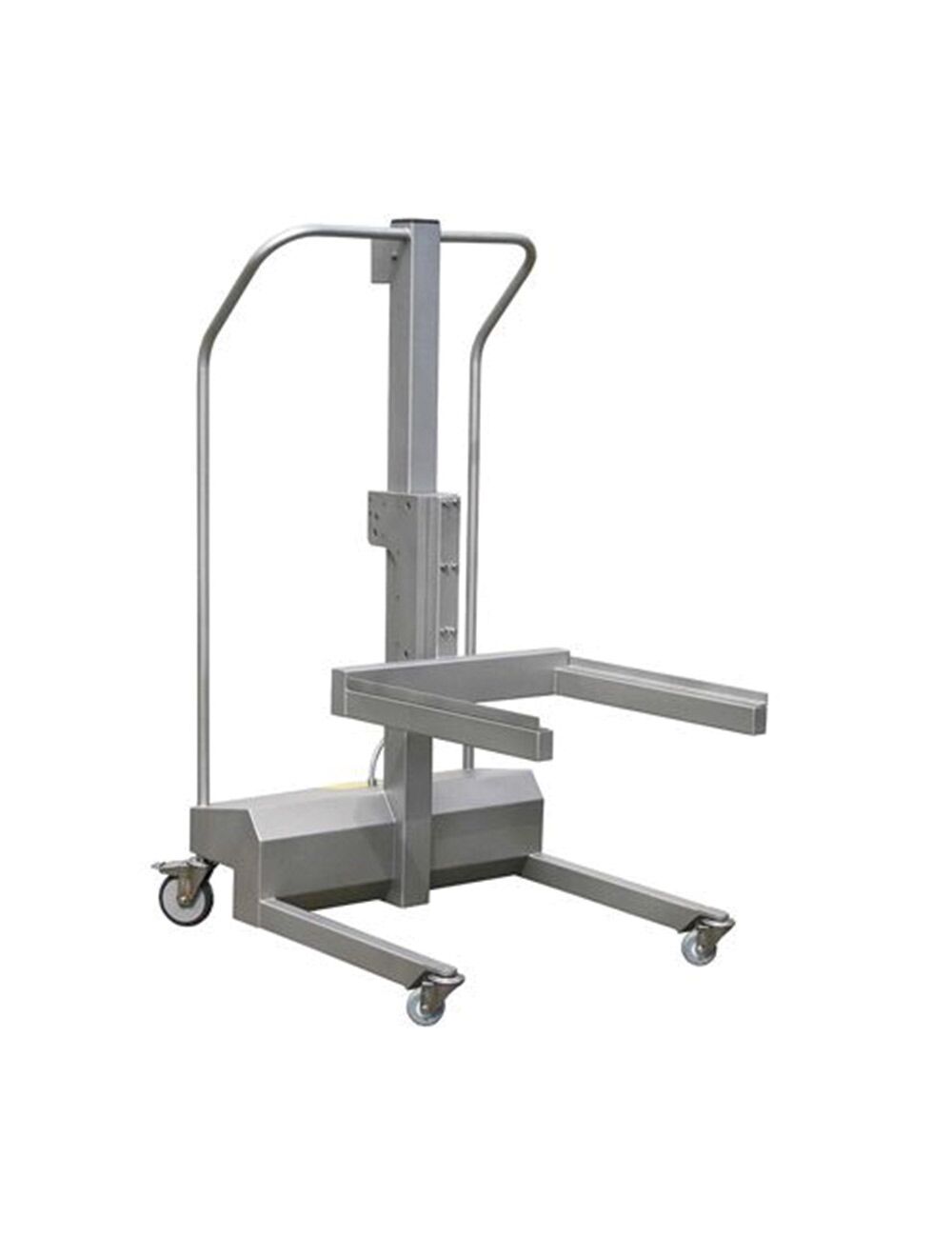

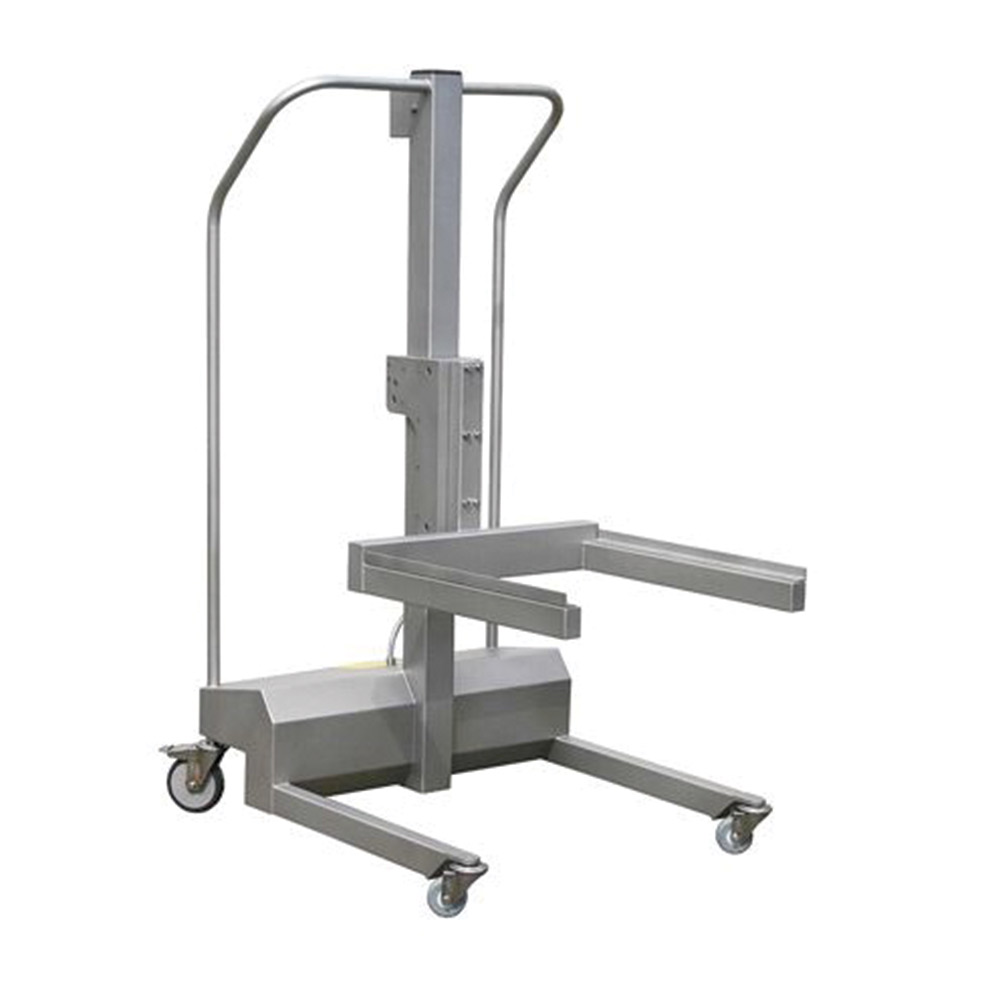

Multipurpose Lifter - Forks Lifting

Multipurpose Lifter - Lifting Forks

# Part Number:
608/EL5-forks-lifting
  • L 885 x W 500 x H 2070
  • Lightweight, mobile, battery operated lifting and loading machine.
  • Capability to lift reels directly from pallets.
  • Saves on labour and increases production efficiency.
MORE Multipurpose Lifter - Lifting Forks FEATURES


Enquire For Price

The Multipurpose lifter with lifting forks attachment is designed for lightweight pallet, dollie, bins, hoppers and container lifting. Its smaller footprint and lightweight design ensure the lifter is accessible and easy to use. This makes it the ideal lifting alternative to forklifts and pallet trucks in any environment where space is at a premium.

A variable lifting height of up to 2000mm means that operators can use the multipurpose lifter to efficiently and safely store and stack lightweight pallets and containers at a variety of heights. This helps to protect operators from the risks of manual handling related injuries and makes the task more efficient.

Another application where the forks attachment is particularly useful is in factories where trays are stacked up high and transported around on dollies and bogies. This is particularly common in the bakery sector. The forks configuration ensures that trays are always loaded or unloaded onto the dollies at a consistent working height. This prevents operator bending fatigue and again reduces the risks of manual handling related musculoskeletal injuries.

  • Maximum Load Capacity: 100kg - Dependent on attachment and application.
  • Maximum Lift (mm): 2000mm approx
  • Finish: Bead Blast
  • Power Supply Features:
    240 volts single phase
    Sealed gel battery
    Separate battery charger and power lead
  • Protection: IP65
  • Features:
    Quick-change adapter for attachment switchover
    Variable height push handle
    Soft start drive for accurate positioning of attachment
    Up / Down controls on remote handset
    4 swivel wheels
    Braked rear wheels
  • Options:
    Manual winch unit available instead of battery powered
    Extended or shortened column height
    Base frame available longer or wider to suit applications
    110 volts charger
    Grade 316 Stainless Steel
    Adaptor plate for use with additional attachments
    Rubber or anti-static wheels.
