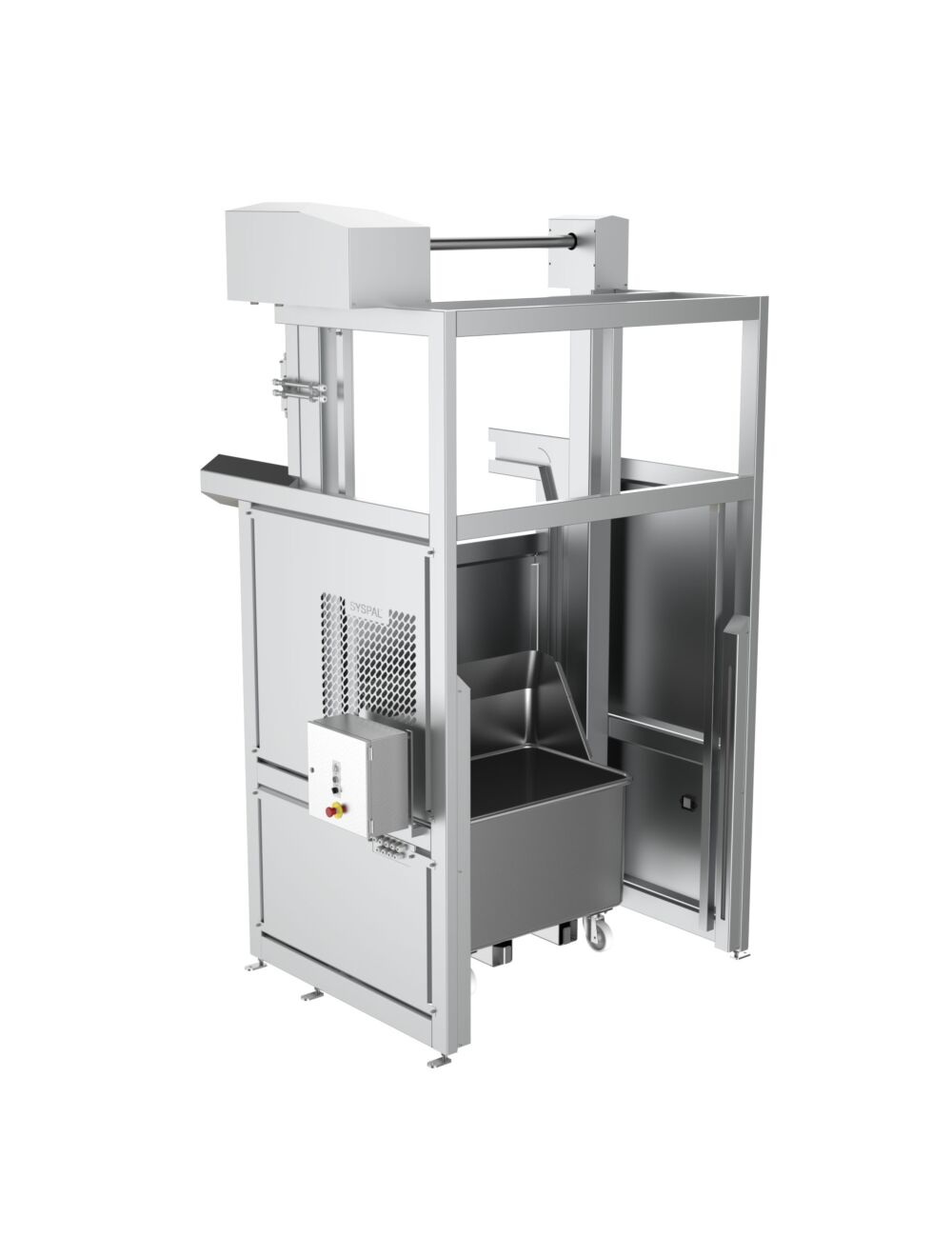

Tank Column Tipper

# Part Number:
DC200-1020

This tank double column tipper is designed to safely raise and tip 450L tanks in any hygienic environment, flexibly designed to accommodate bespoke tip heights, tip angles and production line integration options to meet individual needs.

Can handle up to 800kg of product inside 450L tanks
Grade 304 stainless steel construction
Enables fast and efficient handling of various products
Hygienic design
Operator control functions and production line integration options available
Enables fast and efficient handling of various products
Interlocked guarding as standard

If you have any questions about this product please call our friendly sales team on +44(0)1952 883188 or complete our contact form to receive a call back

MORE Tank Column Tipper FEATURES

Enquire For Price

Qty:

Product Description

These lifters can be designed to tip a 450L tank at heights to suit most applications
Grade 304 stainless steel
Enables fast and efficient handling of various products
Can be supplied with guarding and interlocking gates for safety
Finish: Bead Blast
Electrical Requirements: 415 volt 3 phase neutral and Earth
Control voltage: 24 volts
Protection: IP65
Maximum S.W.L: 800kg
Tipping angle range:130° max - 40° from horizontal position
Features: Hold to run Tested to 1½ times SWL Lifting via duplex chains
Options: Guarding with interlocked gates
Syspal designs and manufactures a wide range of lifters to suit most requirements
