Scissor Lift Table

Scissor Lift Table

# Part Number:

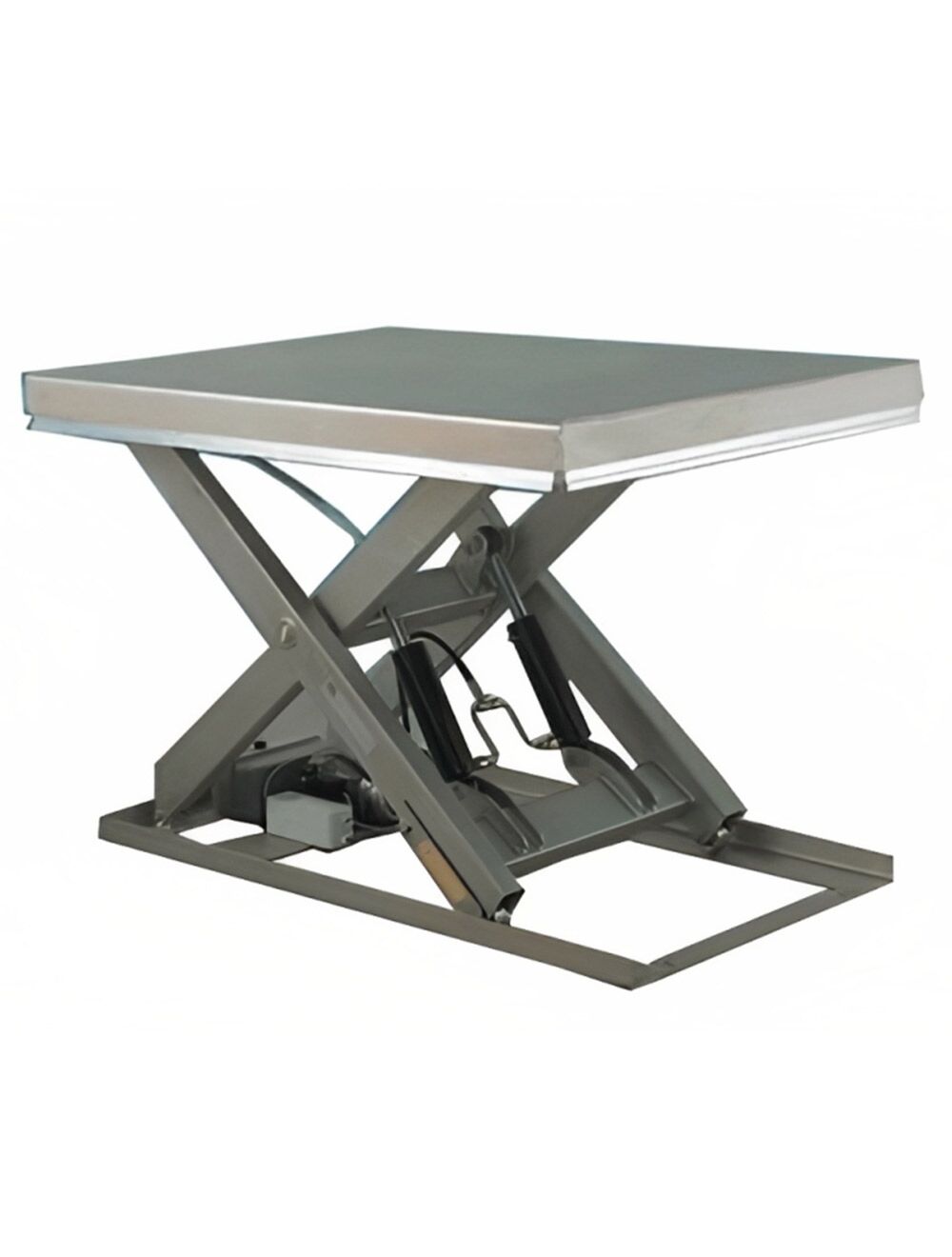

Scissor Lift Table
  • Engineered to reduce heavy lifting, improve productivity and eliminate injuries.
  • Platform, base frame and scissors are manufactured from Grade 304 Stainless Steel.
  • Offers ease of operation, low maintenance and fast clean down.
  • Can be used in wet environments.
MORE Scissor Lift Table FEATURES


Availability: In stock

Product Name Price Qty
Scissor Lift Table - Capacity: 500kg - Lift Speed: 8 seconds - kW: 0.37 - Weight: 105kg L 900 x W 650 x Travel 550 Closed Height 160 -
SKU: 608/TR500

POA
Scissor Lift Table - Capacity: 1500kg - Lift Speed: 22 seconds - kW: 0.75 - Weight: 300kg L 1300 x W 900 x Travel 1100 x Closed Height 230 -
SKU: 608/TR1500

POA
Scissor Lift Table - Capacity: 1000kg - Lift Speed: 18 seconds - kW: 0.75 - Weight: 160kg L 1300 x W 650 x Travel 830 x Closed Height 180 -
SKU: 608/TR1000

POA
Scissor Lift Table - Capacity: 2000kg - Lift Speed: 22 seconds - kW: 0.75 - Weight: 240kg L 1300 x W 800 x Travel 820 x Closed Height 230 -
SKU: 608/TR2000

POA
Scissor Lift Table - Capacity: 1000kg - Lift Speed: 18 seconds - kW: 0.75 - Weight: 190kg L 1300 x W 800 x Travel 830 x Closed Height 180 -
SKU: 608/TR1000B

POA
Scissor Lift Table - Capacity: 1000kg - Lift Speed: 18 seconds - kW: 0.75 - Weight: 210kg L 1300 x W 1000 x Travel 830 x Closed Height 180 -
SKU: 608/TR1000F

POA

This 304 grade stainless steel scissor lift table is engineered to reduce heavy lifting, improve productivity and eliminate injuries.

Thanks to the scissor design of the table the amount of unreachable spaces where germs and dirt can accumulate is reduced which makes it easy to clean down providing an ideal piece of equipment for hygienic environments with minimal maintenance required.

Powered by a hydraulic electric pump this table is able to lift between 500kg and 2000kg dependent on model

  • Can be used in wet environments
  • Electrical requirements: 400 volt 3 phase neutral and earth.
  • Protection: IP65
  • Features:
    Adjustable return valve
    Maintenance safety bars for service
    Emergency stop valve on all cylinders
    Manual emergency lowering valve
    Pressure compensating lowering valve
    Maintenance safety bars for service

Syspal KG designs and manufactures a wide range of equipment to suit most requirements. Contact the KG sales team to discuss your needs.
